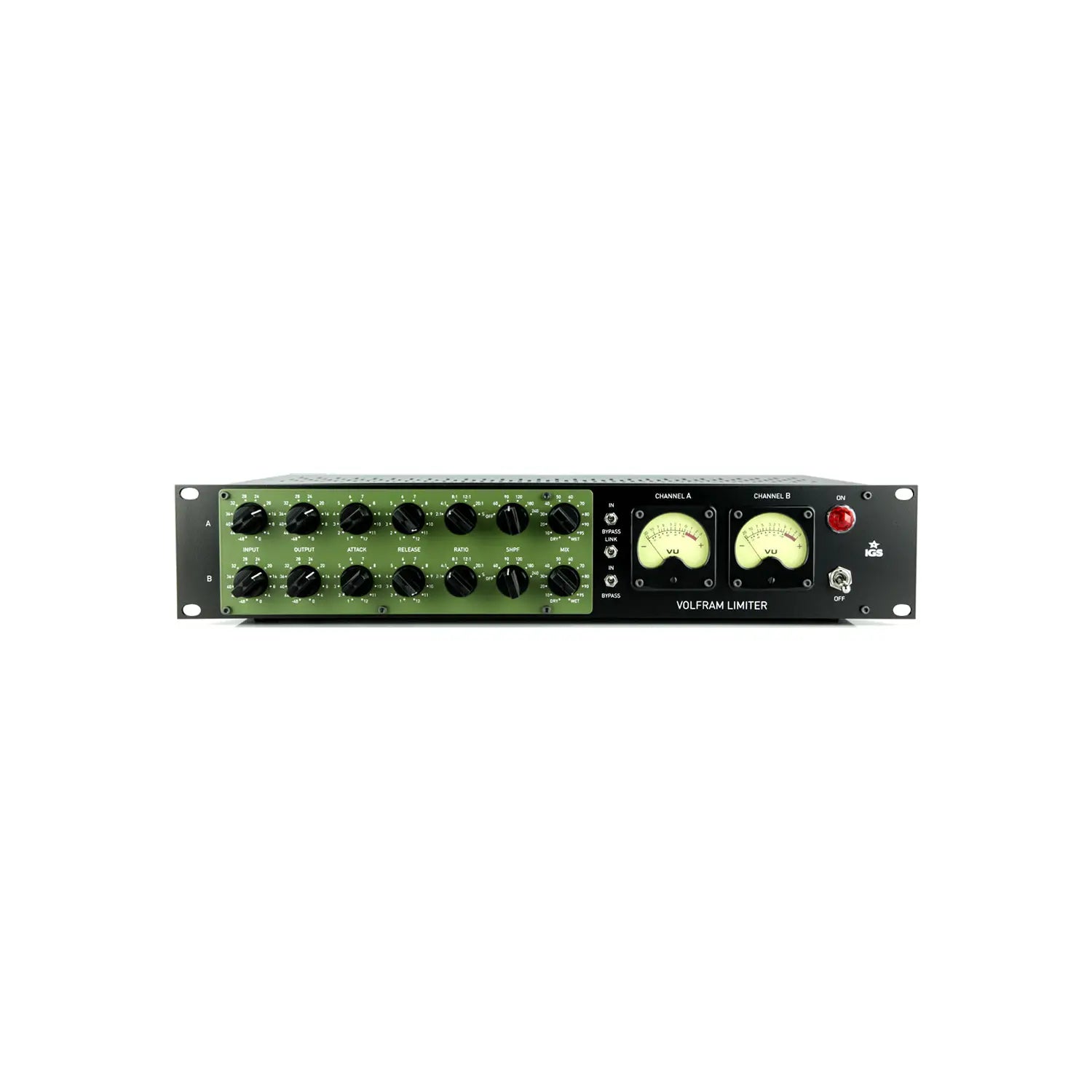

IGS Audio Volfram Limiter

Stereo FET Compressor
Close

Our price:$3,490.00 GST
Order Code: VOLFRAMLIMITER

Contact us for expected arrival, queue backorder

IGS Audio Volfram limiter is a dual mono version of the legendary 1176 archetype studio limiter.

The core of versatility of sound of the 1176 lies in the balance between the Input, Output, and Release knobs.

The Legacy:

1176 is a very well known and appreciated compressor in professional recording studios all over the world. If you’ve already heard how well this compressor works with vocals, you many never be able to manage without one! Additionally the Volfram works great with drums, synths and any other sources.

Legendary FET design, two linkable channels, Wet/Dry mix knob for parallel compression

Volfram limiter is a 45dB transistor amplifier equipped with a remarkable limiter. Compression is achieved with the FET transistors. At extreme settings the Volfram adds some pleasant distortion to the output. All manipulators are 12-pole (6-pole for ratio, HPF) switches. It is a pure A class circuit.

“It’s all you need to get a rich and loud sound”

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Device type
Fet Compressor BF245A, matched transistor
Sidechain HPF 240, 180, 120, 90, 60, Off
All stepped manipulators Yes
Input & Output
Input Impedance (balanced) 10k Ohm
Output Impedance (balanced) 600 Ohm, IGS Custom transformers
Levels
Operating Level +4dBu
Max input level +18dBu
Max output level +18dBu
Noise Level 110dB A
Max. gain 45 dB
Max Gain Reduction 30 dB
Time constants
Attack: 20-800 microseconds (1 – slow, 12 – fast)
Release: 0.1 – 1,5 s (1 – slow, 12 – fast)
Bandwidth
Frequency response 8 Hz – 22 kHz +/- 0.2dB
Distortion (@ 20 Hz – 20 kHz)
Signal to Noise Ratio >84dB
THD 0.12%
THD+N 0.19%
Crosstalk 100dB
Power
Power consumption 20 Wats
Power supply Internal
