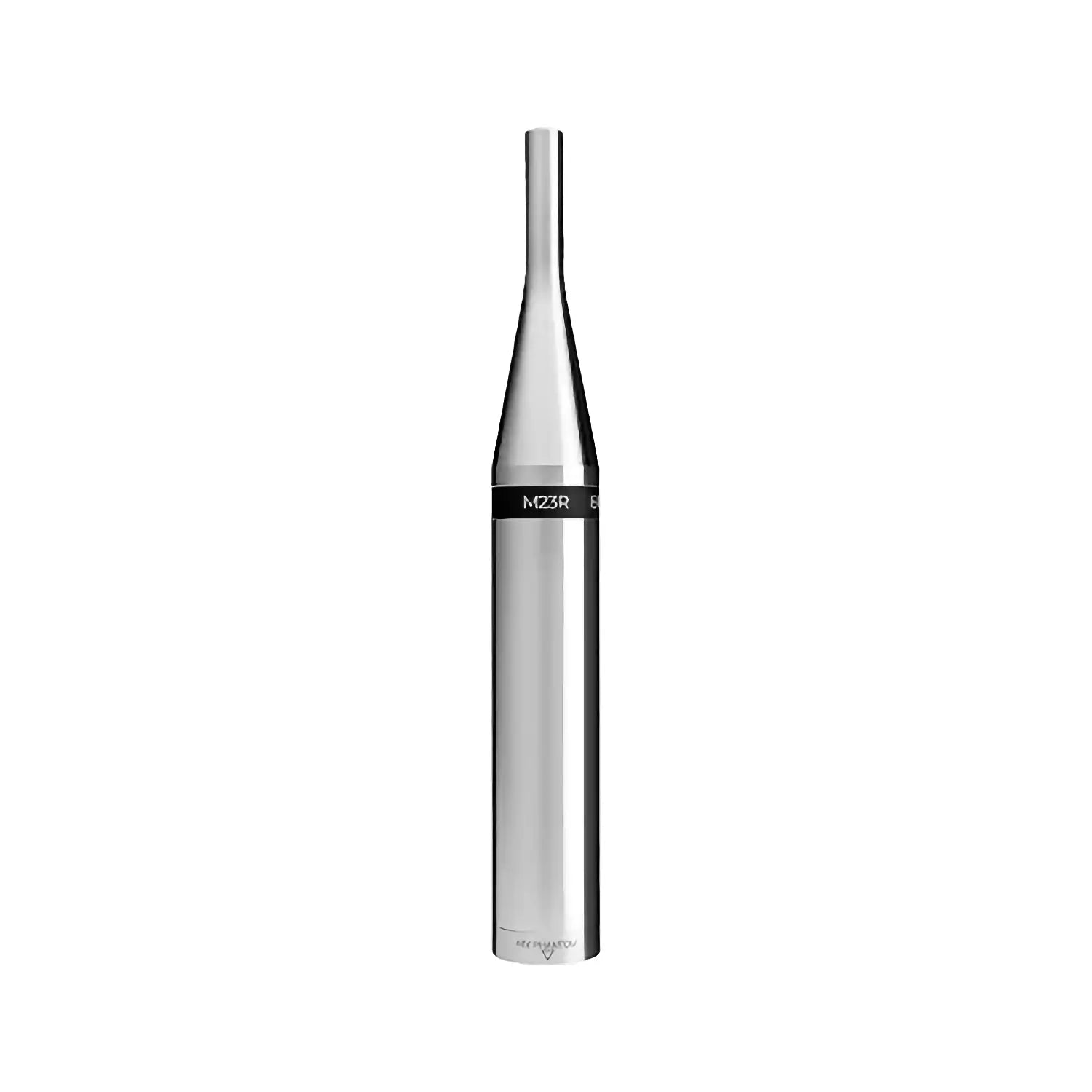

Earthworks M23R Reference Series Measurement Microphone. Infinitely matched allowing users to buy any quantity of matched mics in any time frame. One purchased today will match one purchased years from now. Manufactured to within +/-0.5dB of each other. Omnidirectional polar pattern, 3Hz-23kHz flat frequency range, Self noise of 20dB SPL, Max Acoustic Input 140dB SPL. Supplied with clip, and individual chart showing sensitivity and frequency curve.

SKU: EAR-M23R

Features

  • Flat frequency response from 3Hz to 23kHz
  • High sensitivity of 36mV/Pa
  • Omnidirectional polar pattern
  • Phantom power requirement of 24-48V
  • Maximum acoustic input of 140dB SPL
  • XLR-3 output
  • ANSI Type 1 compliant
  • Recommended re-calibration every year

Tech Specs

Frequency Response 3Hz–23kHz
Sensitivity 10mV
Polar Pattern Omnidirectional
Phantom Power Yes
Weight 0.225
