Blackmag ATEM Mini Pro ISO

Multi-camera vision switcher for streaming, recording + DaVinci project file

Order Code: SWATEMMINIBPRISO
Enquire
Our Price: $1,425.00

Blackmagic Design ATEM Mini Pro ISO allows recording of 5 streams as clean feeds for later editing.

ATEM Mini Pro ISO is an affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles and much more.

As with ATEM Mini Pro, it includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. PLUS with this ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.

Media pool images used are also saved with the video files. The video files include metadata tags such as synced timecode and camera numbers. Imagine re-editing your show with new color grades, effects and graphics! Even the audio sources are all recorded so you can professionally remix your audio.

Photo of Blackmag ATEM Mini Pro ISO available from Factory Sound

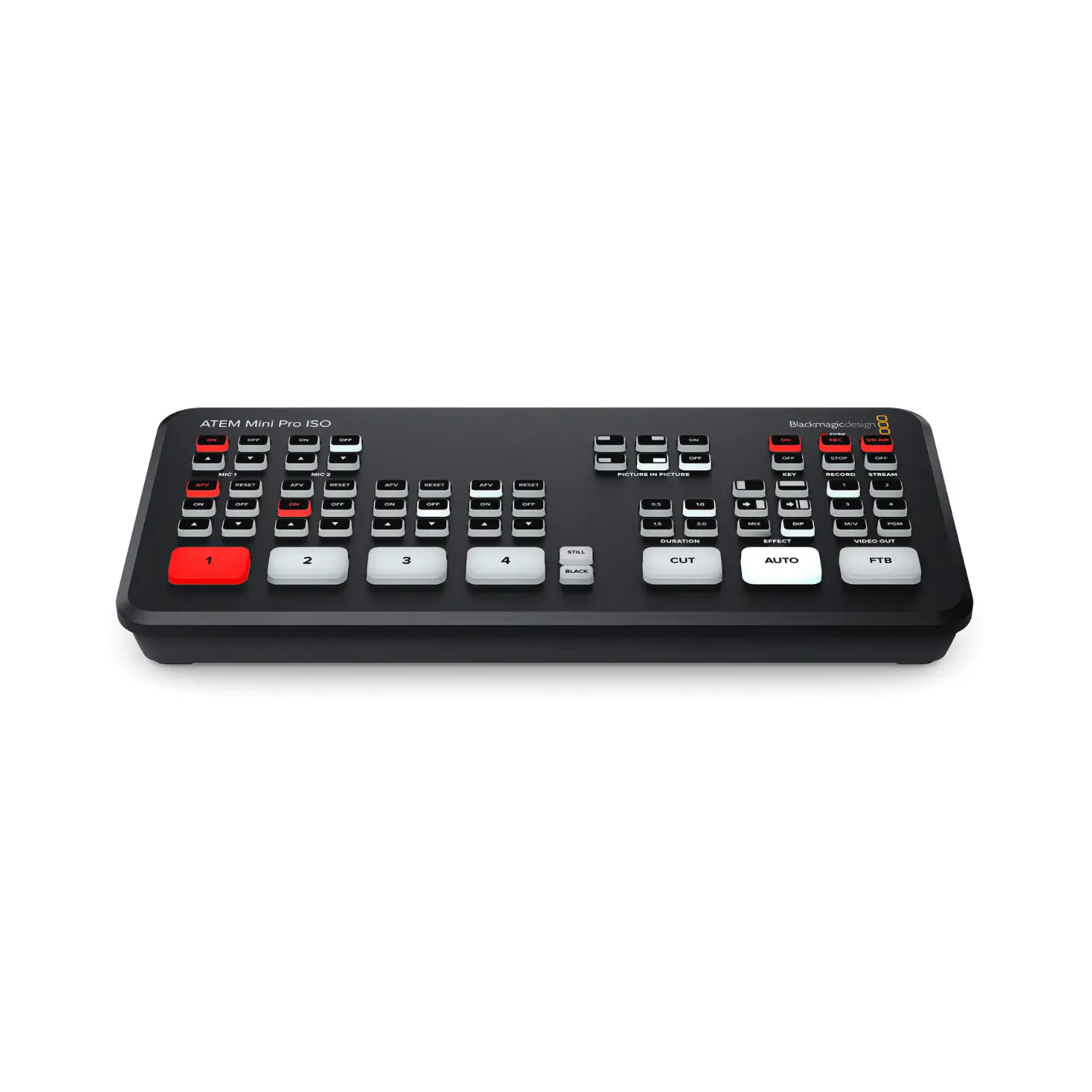

  • Atem-mini-pro-iso

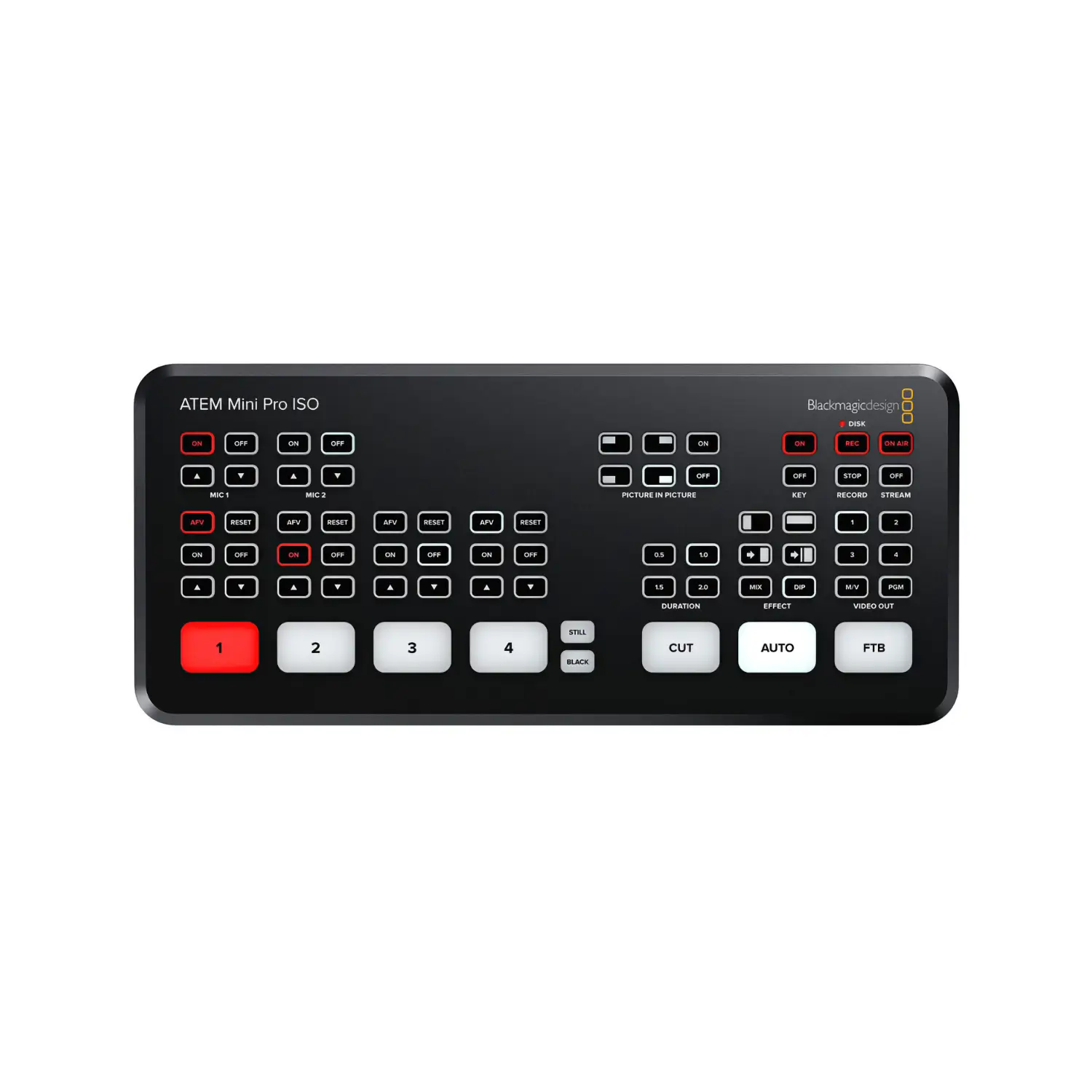

  • Atem-mini-pro-iso-top
  • Atem-mini-pro-iso-diagram
  • Atem-mini-pro-iso-connections

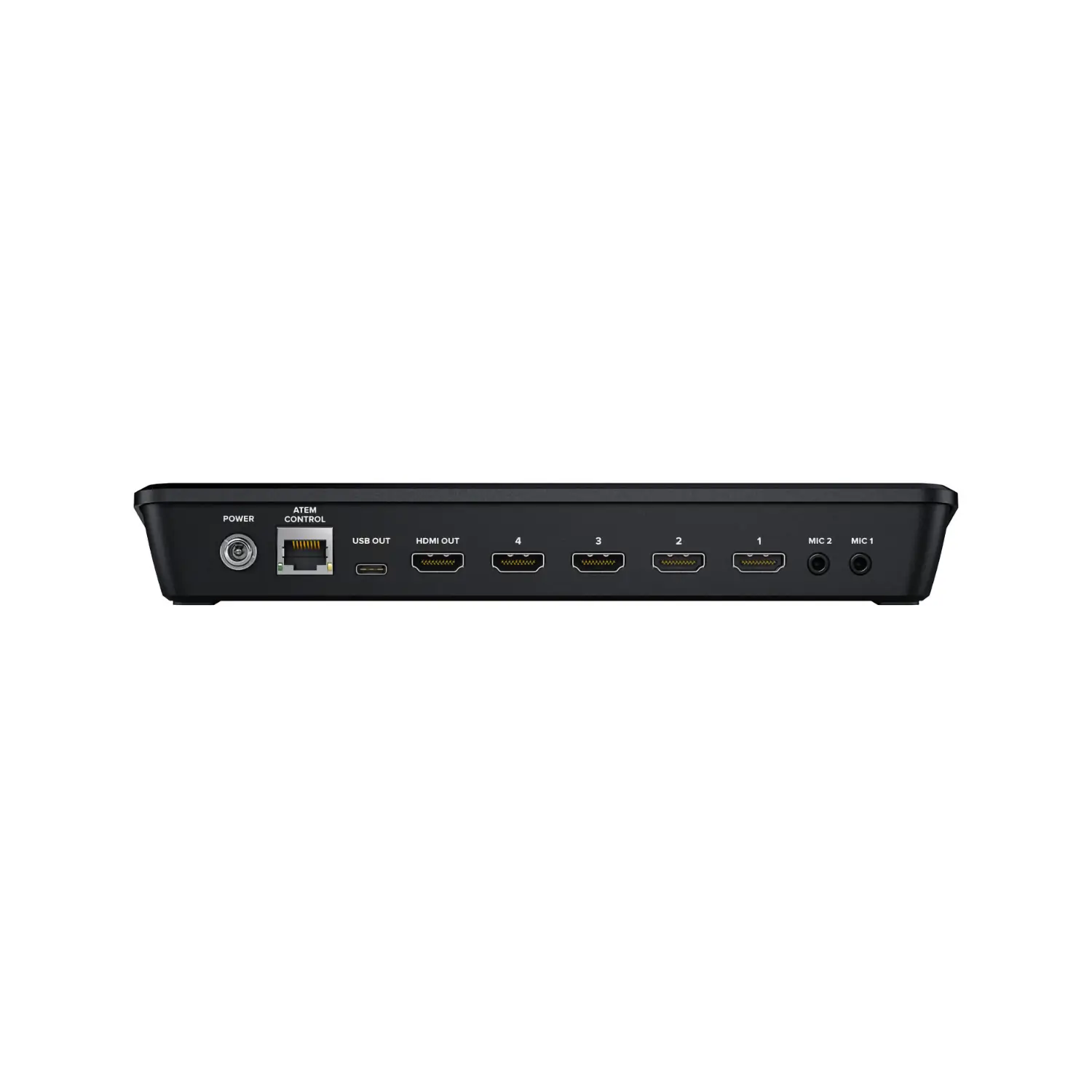

ATEM Mini Pro ISO connections:

  • Total Video Inputs: 4
  • Total Outputs: 2
  • Total Aux Outputs: 1
  • Total Audio Inputs: 2 x 3.5mm stereo mini jack.
  • Total Audio Outputs: None, embedded audio only.
  • Timecode Connection: None
  • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable.?2 channel embedded audio.
  • Video Input Re-Sync: On all 4 HDMI inputs.
  • Frame Rate and Format Converters: On all 4 HDMI inputs.
  • HDMI Program Outputs: 1
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
