ZOOM

ZOOM H3-VR

Virtual Reality Recorder

Order Code: H3-VR
Enquire
RRP: $749.00

Stirring things right up, Zoom H3-VR really does put 360-audio in the palm of your hand.

Ambisonics Audio for VR?
The H3-VR’s 4-capsule Ambisonic mic captures precise 360-degr VR audio recordings up to 24 bit/96 kHz. And without ever connecting to a computer, the onboard decoder allows you to export Ambisonics B-format files directly.

Binaural 3D Stereo?
H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that enhances 2D productions with 3D audio.

Remote iOS control
Staying out of the shot can be tricky when recording a 360-degree video, which is why the H3 Control App lets you remotely access transport controls, level settings, and metadata notes right from your iOS device.*??

*Optional BTA-1 adapter required

Check the short (2min) clip below on the VIDEO tab, to see a more detailed overview of Zoom H3-VR

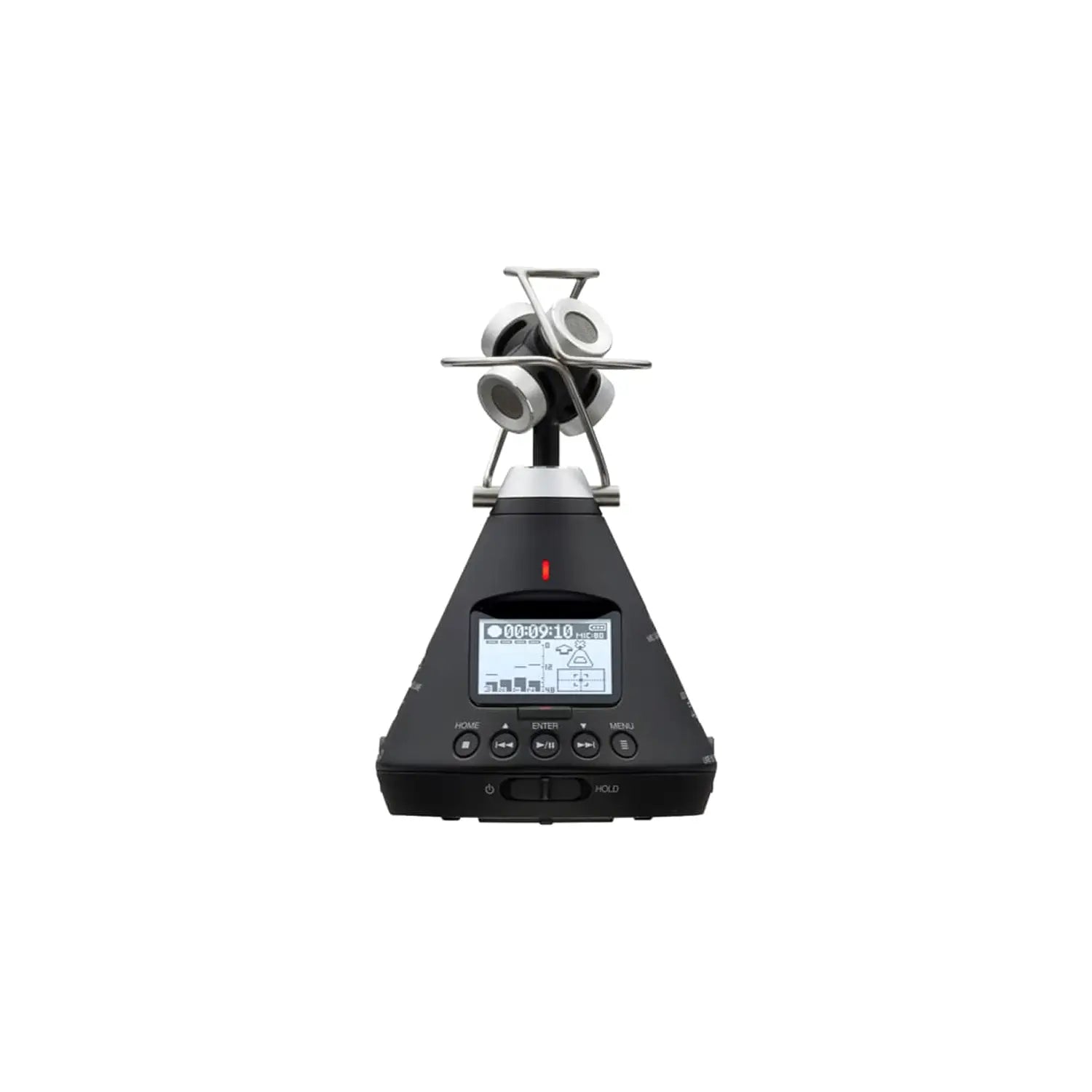

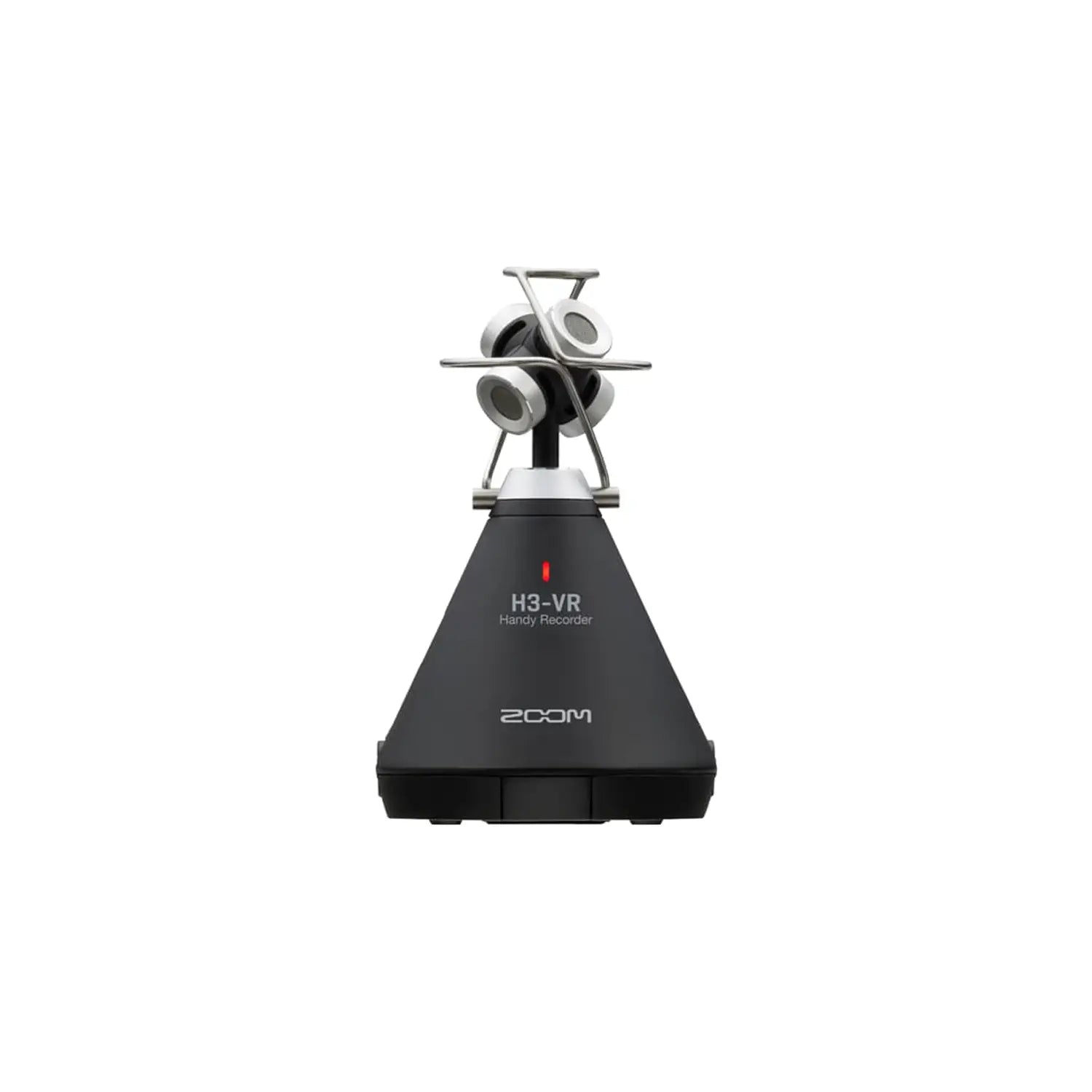

Photo of ZOOM H3-VR available from Factory Sound
  • H3-vr
  • H3-vr-controls
  • H3-vr-capsule
  • H3-vr-app

Recorder Included - various formats

Ambisonics  A,  Ambisonics  B  (FuMa/AmbiX)
WAV  4ch  poly  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48  kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit
Stereo
WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit
Binaural
WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit

H3-VR features:

  • 4 built-in mics arranged in an Ambisonic array
  • Full-sphere surround sound recording
  • Single-knob gain control of all input levels
  • Onboard Ambisonics A to B decoding
  • Three recording modes: Ambisonics, Stereo Binaural or Standard Stereo
  • Record up to 24bit/96kHz
  • Stereo binaural monitoring of Ambisonics signal
  • Headphone output and line output
  • Slate tone
  • Extensive metadata
  • Auto Mic Position Detection using 6-axis gyroscope (upfront, endfire,
    upside-down, endfire inverted)
  • Level Function to ensure precise angle placement
  • Wireless iOS remote control available through the BTA-1 Bluetooth adapter
  • Onboard Ambisonics playback with audio rotation
  • Accurate internal clock with .5ppm discrepancy
  • USB 2.0 Audio Interface Mode
  • Zoom PC/Mac post-production software to play, change a direction, and convert
    to binaural, stereo,and 5.1ch surround file
  • Powered by 2 AA batteries or USB bus power
  • Records to SD card up to 512GB
