Radial

Radial HotShot-ABo

Mic/Line AB Switcher - footswitch

Order Code: HotShot-ABo
Enquire
Our Price: $149.00

HotShot-ABo is a footswitch AB output selector, with 1x XLR input, 2x XLR outputs and a latching toggle footswitch.

Being a Radial product though, there’s a little more to it than just that.

It features separate -15dB pads on each output, to help better balance the signal levels. And since it is completely passive, powering is not required to make it work.

Use it for a variety of applications including driving two channels on a mixing console for dry and wet effects routing, to divert a mic from the PA system to the monitors or intercom – particularly useful for talking to other band members who are also running ‘in ears’ – and also for temporarily muting the signal such as when coughing or for talkback mic control to the talent from the producer's desk.

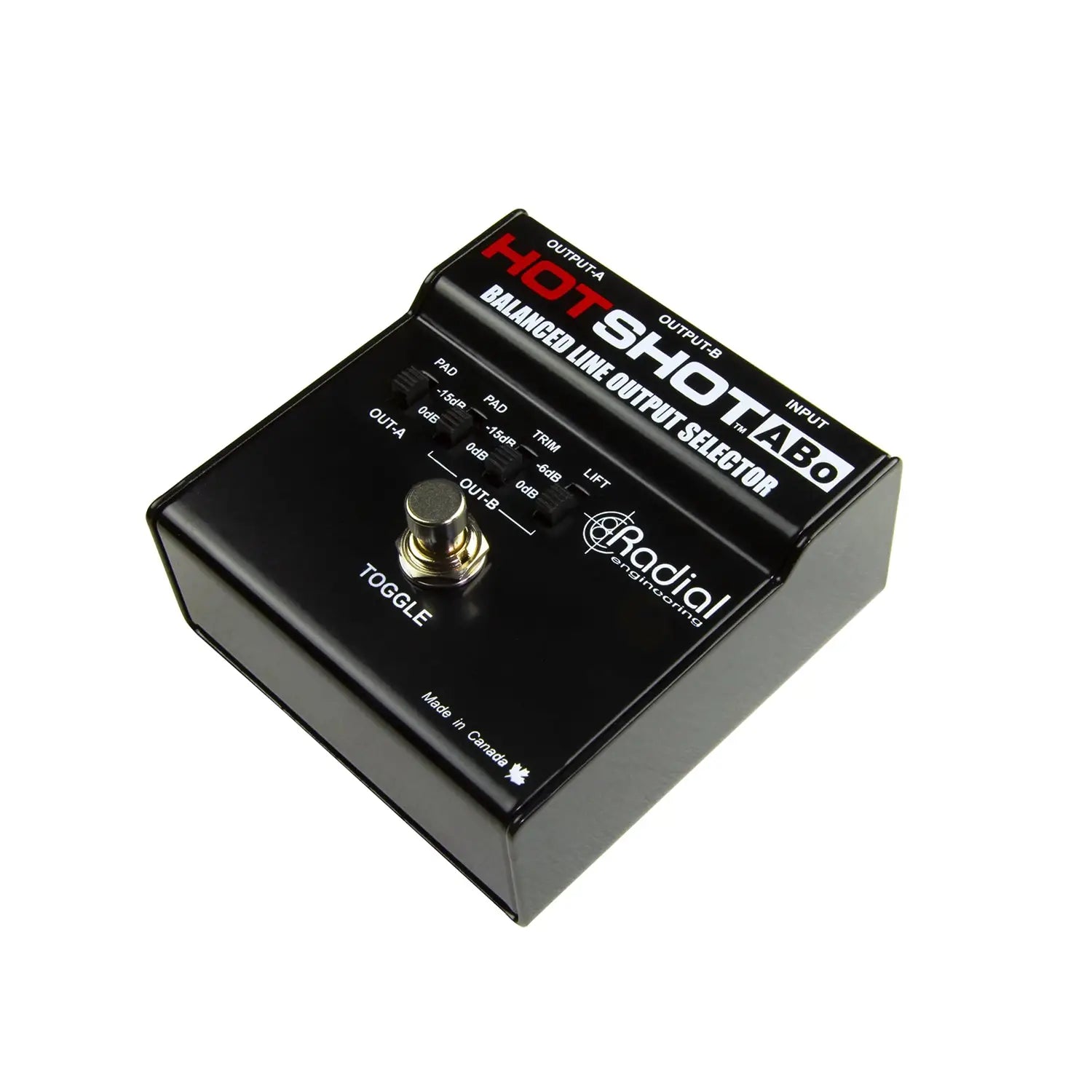

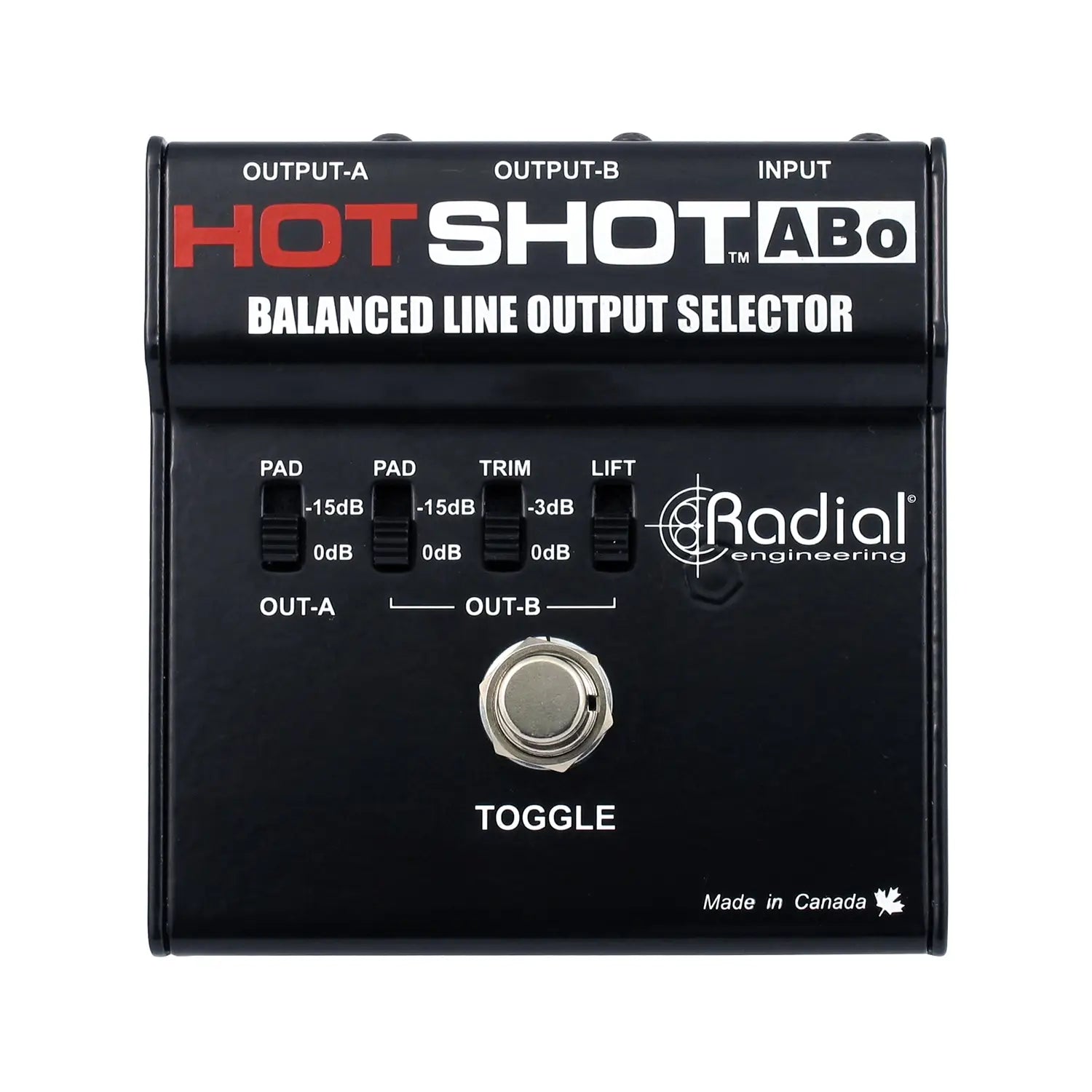

Photo of Radial HotShot-ABo available from Factory Sound
  • Hotshot-abo
  • Hotshot-abo_inputs
  • Hotshot-abo-angle

Features:

  • Redirect a balanced signal to two different destinations
  • Toggle or mute the source with a latching footswitch
  • Selectable input pads to better match signal levels
  • Made from 14 gauge steel for dependability

Specifications

Circuit Type: Passive, true-bypass
Frequency response: 20Hz ~ 20kHz
Switch type: Latching
Dynamic range: Unlimited

Features

Ground lift: Pin-1 on input B
Pad: -15dB on both inputs
Toggle: Selects between input A or B

General

Construction: 14 gauge steel
Finish: Durable powder coat
Size: 92 x 99 x 51mm
Weight: 0.56 kg
Conditions: For indoor use at temperatures between +5° c and +40° c
