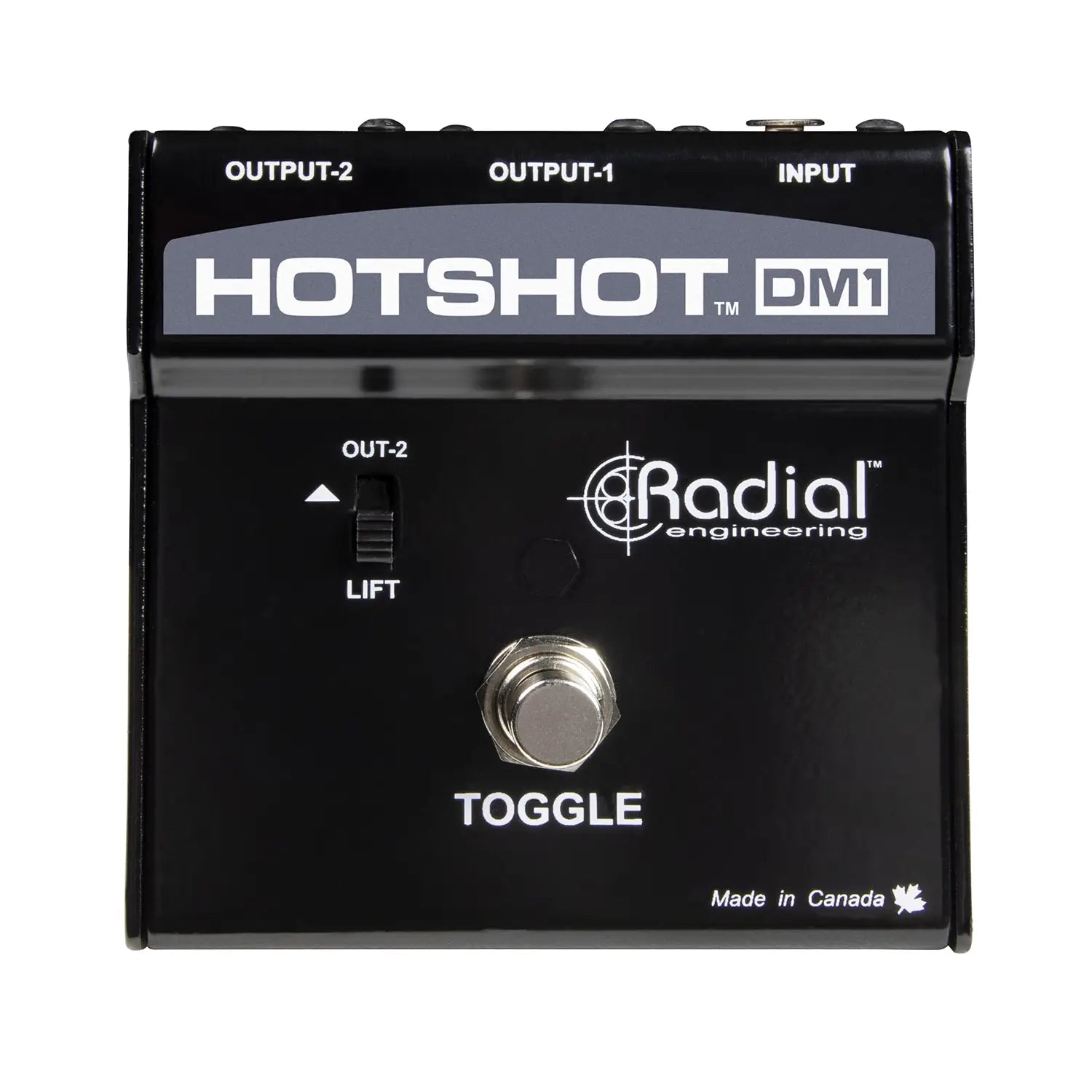

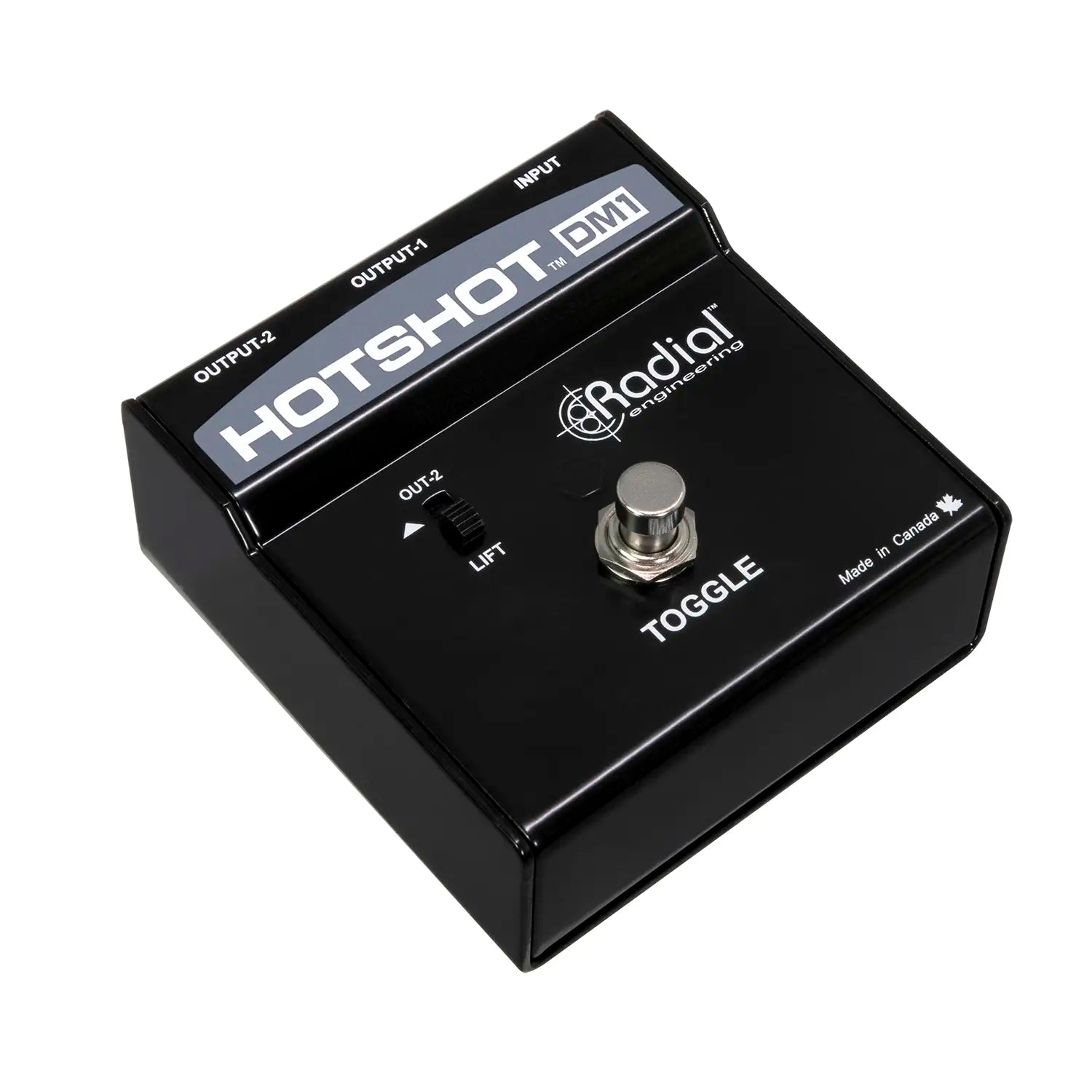

HotShot DM1 is a passive momentary switcher with XLR I/O.
Designed to address on-stage communication problems for artists who employ in-ear monitoring systems, HotShot DM1 is a combination microphone signal splitter and mute switch that allows you to depress a footswitch to mute your mic and redirect the signal to the stage monitoring system or intercom to speak with band members or technicians while on stage.

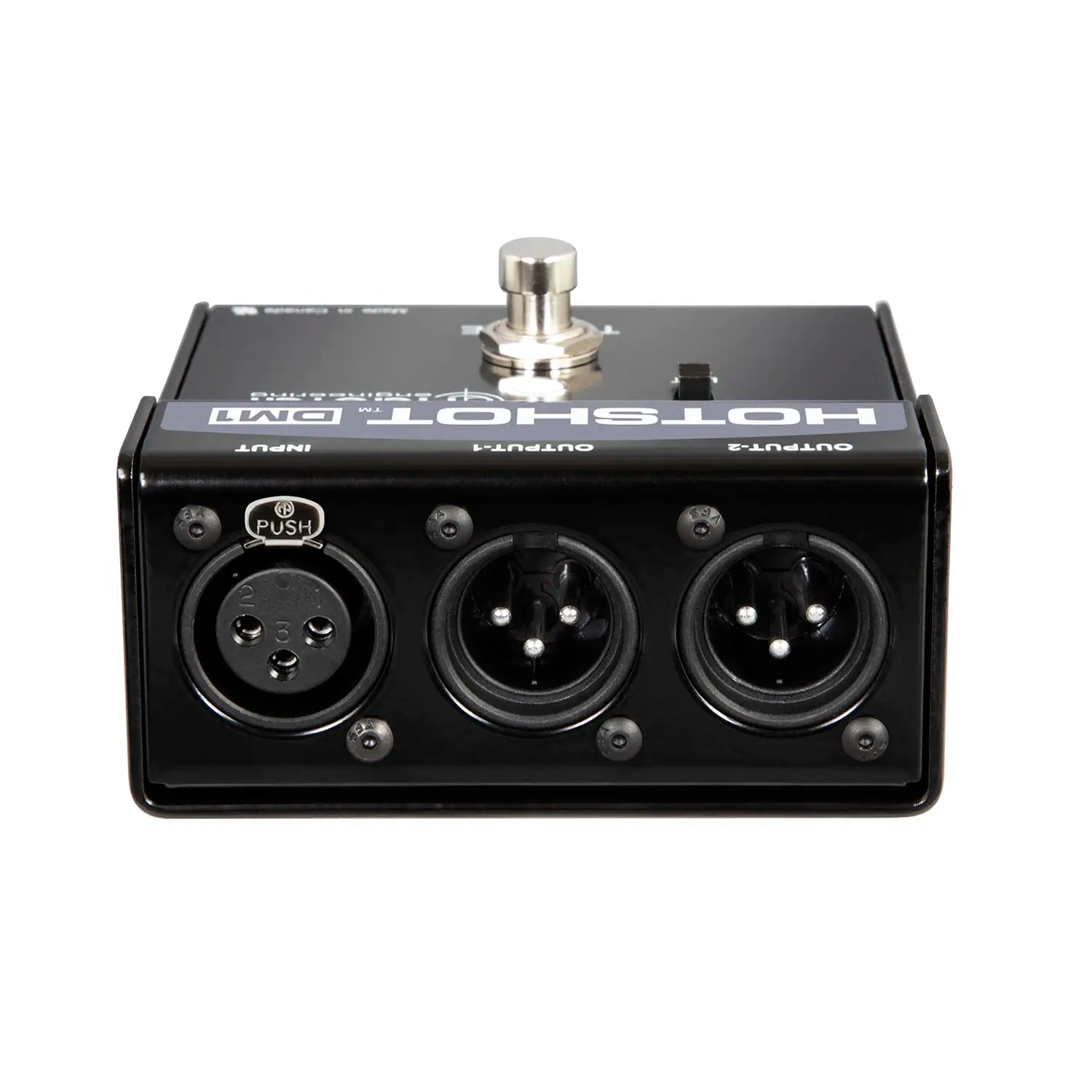

It provides a straight wire connection from the balanced input to the two balanced outputs without introducing any circuitry whatsoever - which of course results in a faultless signal transfer. The only function found on the DM1 is a ground lift switch that lifts pin-1 on output-2 to help eliminate hum and buzz caused by ground loops.
- Redirects mic signal to communicate with techs
- Lets band members with in-ear monitors chat between songs
- Momentary switch requires foot action to engage
- Passive design does not require any power to work
|Circuit Type:||Passive, true-bypass|
|Frequency response:||20Hz ~ 20kHz|
|Ground lift:||Pin-1 on output 2|
|Toggle:||Selects between input A or B|
|Construction:||14 gauge steel|
|Finish:||Durable powder coat|
|Size:||92 x 99 x 51mm|
|Conditions:||For use in dry locations only between 5°C and 40°C|
