Radial

Radial J48

Phantom Powered Active DI Box

Order Code: J48
Enquire
Our Price: $235.00

The build quality and internal magic of Radial DI products is simply undeniable. J48 is a phantom powered DI, with ultra low distortion and massive headroom. It's perfect for acoustic guitar or bass, and has a -15dB input pad should your active pickups squirt it out a bit hot for other DI products. For keyboardists, you can plug your right channel into the 'throughput' and press the handy 'merge' button that "elegantly mixes left-right signals to mono without phase cancellation." Yes, it's the full package.

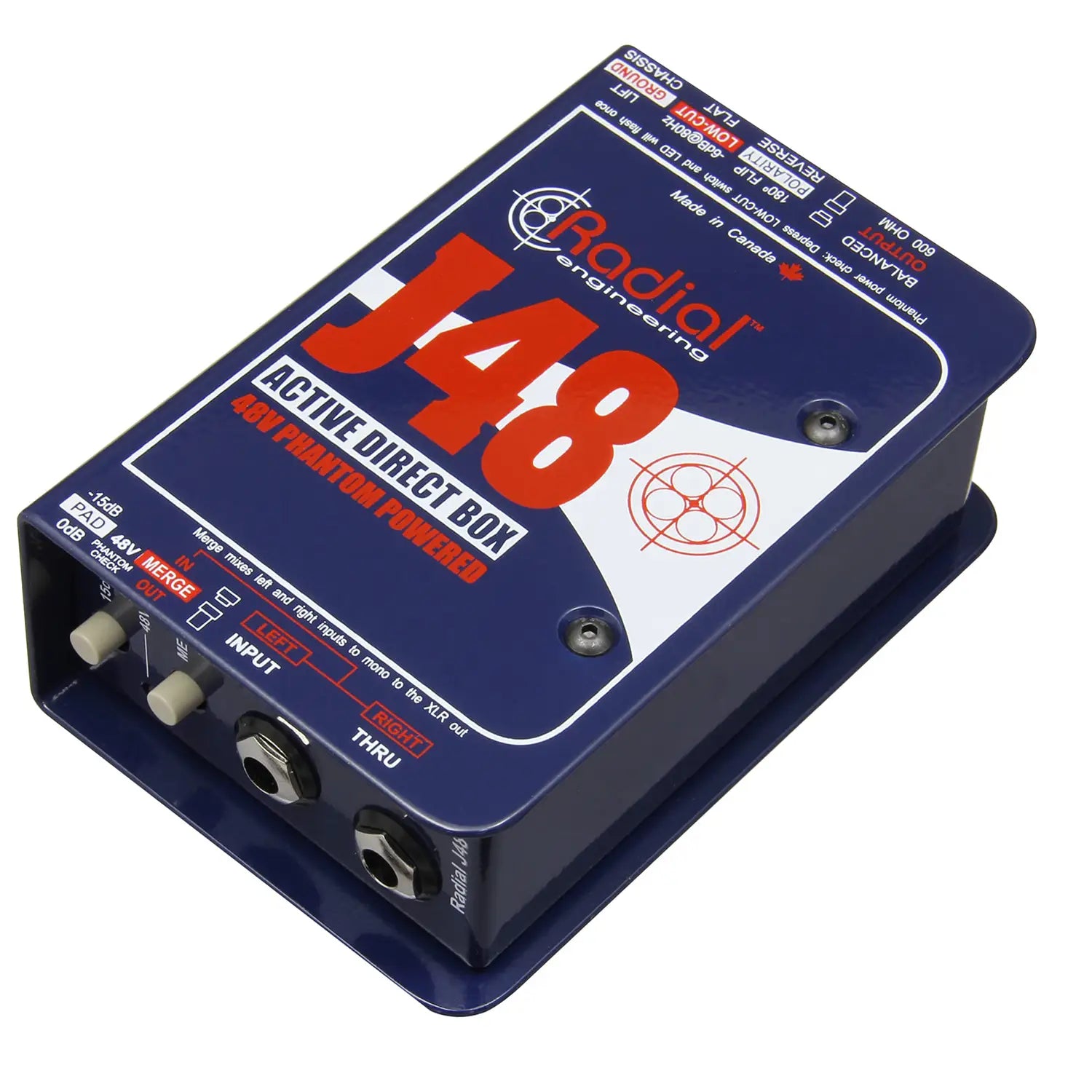

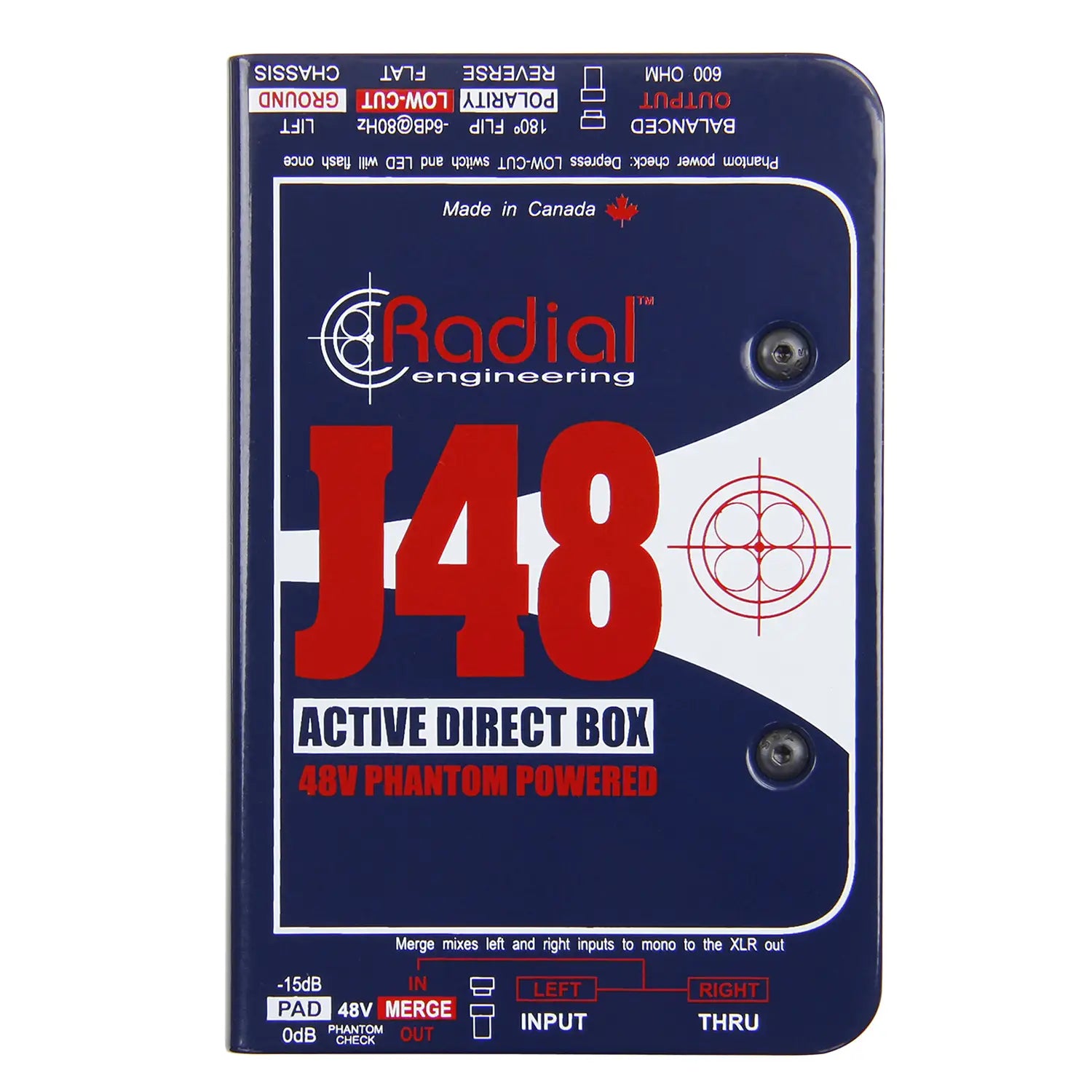

Photo of Radial J48 available from Factory Sound
  • J48

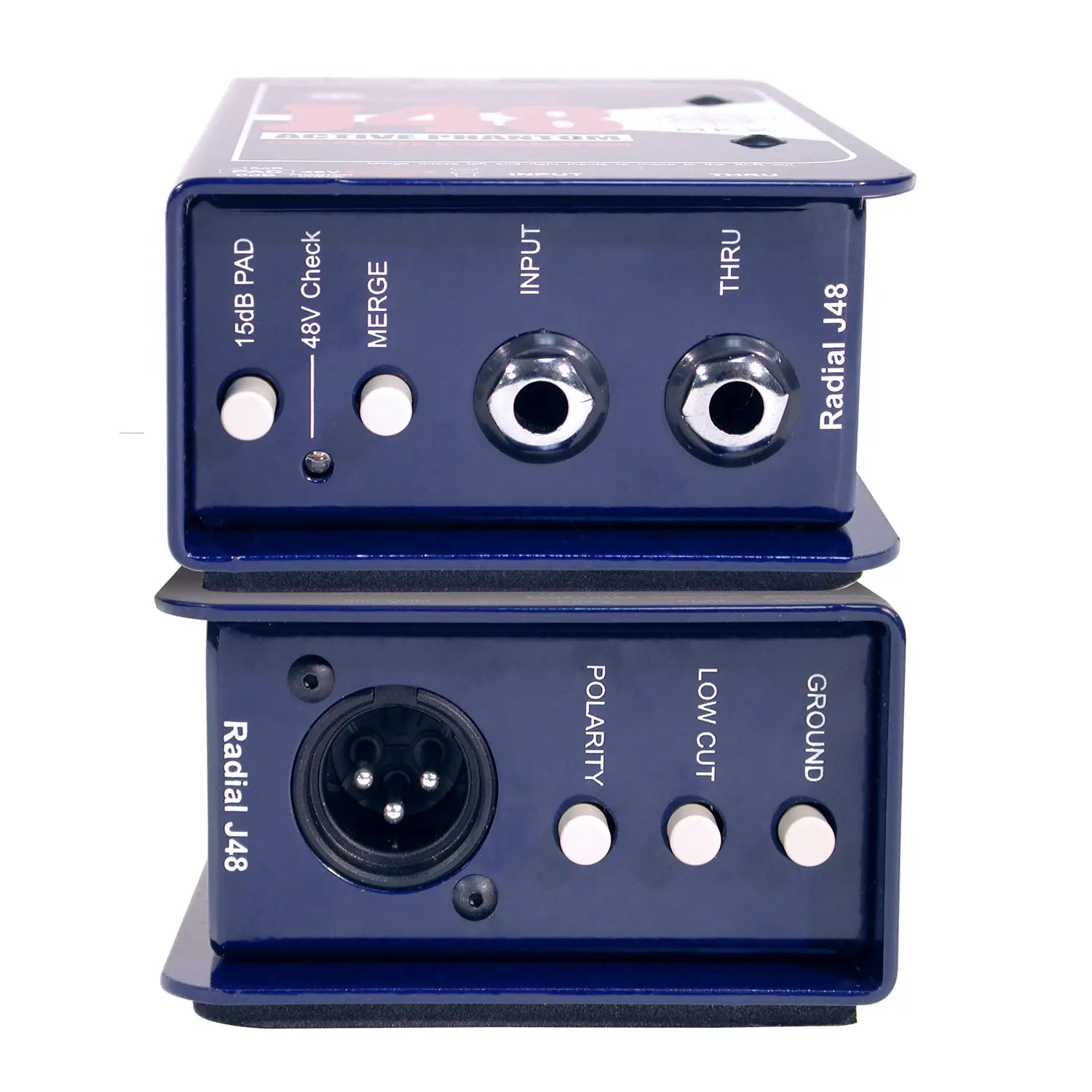

  • J48_connections
  • J48_open
  • J48_inside
  • Ultra low distortion of all types
  • Exceptional headroom & dynamic range
  • Retains instrument's natural sound
  • Powered by 48V phantom

Using only 48V phantom power, the Radial J48 is an active direct box that produces an exceptionally linear response that extends from 20Hz up to well above 40kHz. Low distortion of all types is achieved via a unique digital switching power supply that raises the internal operating rail voltage for added headroom and improved signal handling. The results are truly amazing. The J48 delivers an ideal even-order harmonic cascade and a sonic performance that outperforms DIs costing several hundreds more.

 SpecificationsJ48
Audio circuit type: Proprietary analog circuit with low-noise op-amp
Frequency response: 20Hz ~ 20kHz (± 1.5dB)
Dynamic range: 109dB
Noise floor: -99dB below 0dBu
Equivalent input noise: -103dBu
Maximum input: +10dBu
Phase deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
Total harmonic distortion: 0.002% @ -5dBu
Inter-modulation distortion: 0.003% @ -3dBu
Input impedance: 220kΩ - ¼" input
Output impedance: 600Ω - XLR output
Features
Merge function: IN and THRU jacks are summed to mono
Input pad: -15dB
Polarity: 180º signal polarity reverse switch
Low-cut filter: -3 dB @ 80Hz
Ground lift: Disconnects pin-1 at XLR output
XLR configuration: AES standard (pin-2 hot)
General
Power: 48V phantom - proprietary digital switching
Construction: 14 gauge steel chassis and outer shell, baked enamel finish
Size: 84 x 127 x 48mm
Weight: 720 g
Warranty: 3-year
