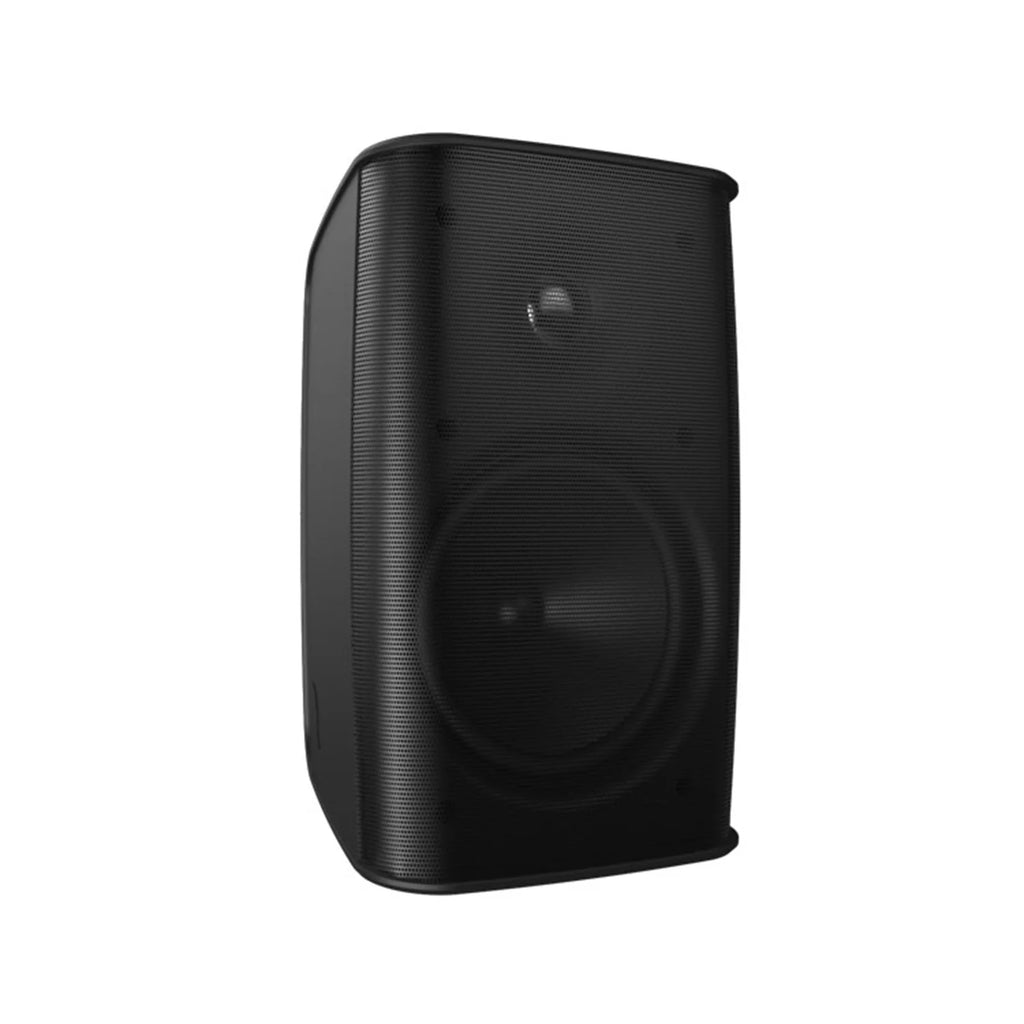

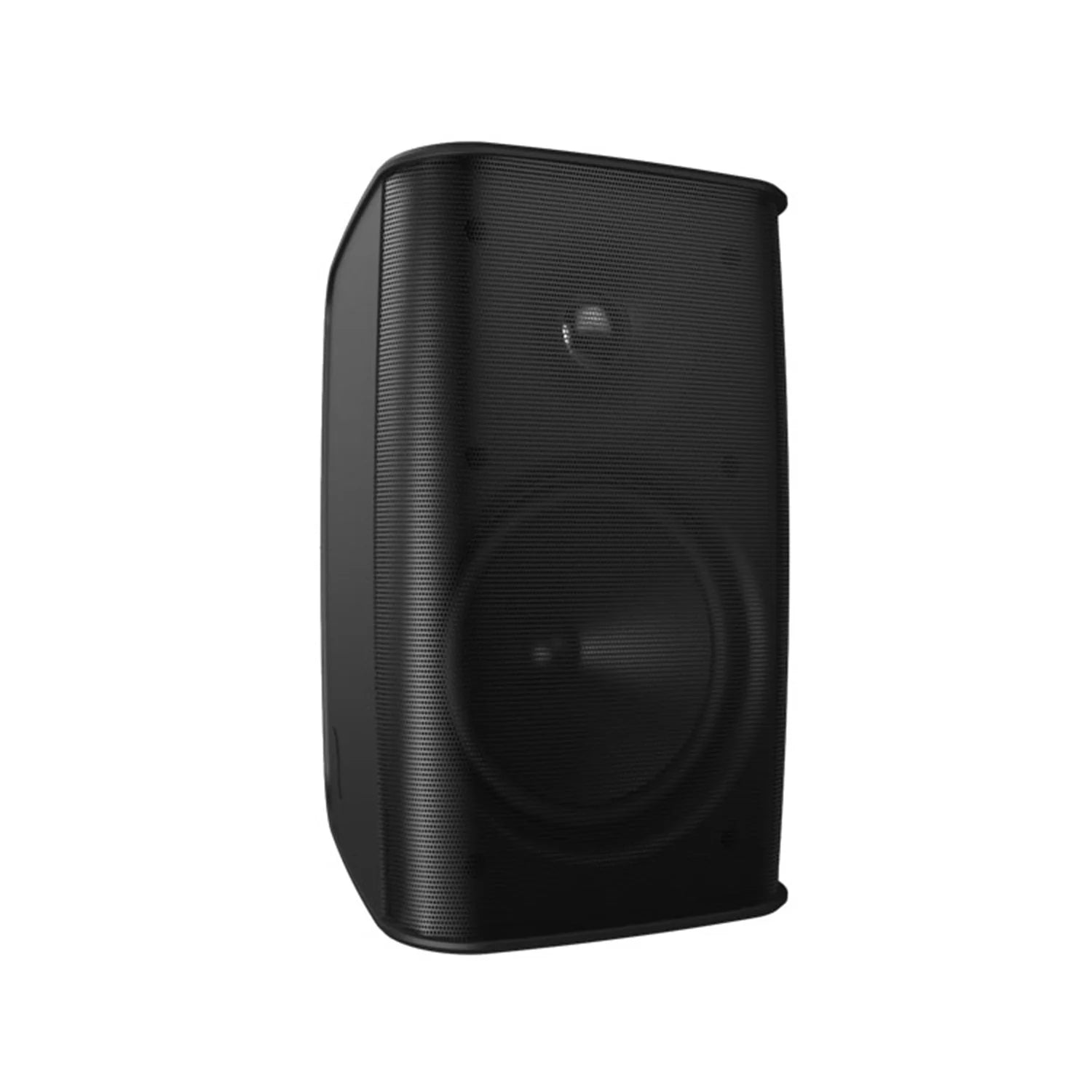

8" + 1" High Fidelity Monitor Speaker 100V / 16 Ohm Black Finish (IP67)
MX Series features:
The MX Series are small in size, considering the SPL output and frequency response they are capable of delivering. The housings are shaped and finished to reflect light in a way that helps them blend in visually with modern architectural styles.
To achieve the very small physical size, a completely new type of woofer design was required. A conventional woofer would not fit in the intended space or deliver the bass response required in a sealed enclosure. Quest has designed a new type of driver and also incorporated a passive resonance circuit that simulates the action of a reflex port. This means an 8" driver can function at full capacity within a cabinet space that would normally be suited for a 6" driver.
As a result of this, and the sealed enclosure design, the MX Series can be environmentally rated up to IP67 with the use of the IPMX1 kit (IP56 without). This IP rating opens up new avenues for system design and placement - the opportunities are endless.
Check below for more details on the easy-to-use UB1 wall mount (included), along with some MX801 technical specifications
Wall mounting is made easy with the patented Q-Mount UB1 wall mounting system.
UB1 (included with both the MX601 and MX801) is a pan/tilt system that is based around a '10 degree locking ball and socket' joint. This allows for precise directivity control at uniform angles.
The locking mechanism requires no tools and is high strength with no capacity to slip over time. The combination of the parallel terminal plug on the MX Series and the "aim and clamp" bracket design means that installation takes minimal time.

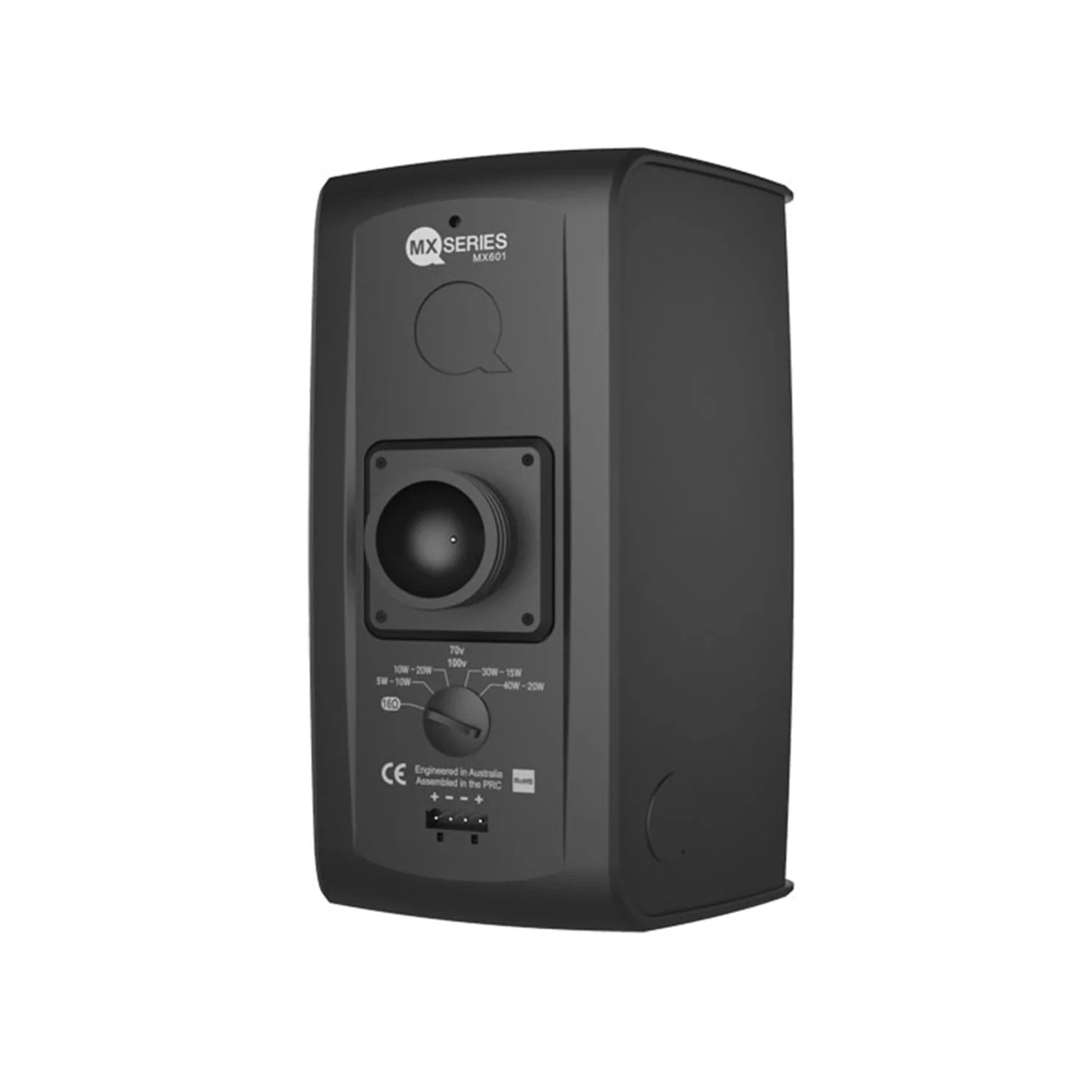

|Transformer Tappings:||100v: 20w / 30w / 40w / 60w
70v: 10w / 15w / 20w / 30w
|Components LF:||8" High Performance Polypropylene Woofer|
|Components HF:||25mm Titanium Dome Tweeter|
|Angle of Coverage:||150° x 120° -10dB|
|Max SPL:||112 dB|
|Frequency Response:||75Hz – 20kHz ±2dB|
|Connections:||Captive Screw Terminal Plug (In/Thru)|
|Environmental Ingress Rating:||Speaker Cabinet = IP56
(IP67 when used with IPMX1 accessory kit)
|Dimensions WxHxD:||345 x 202 x 243mm|
|Net Weight:||4.3 kg|
