Neutrik

Neutrik NA2F-D0B-TX

XLR to RCA Transformer Balancing Adapter

Order Code: NA2F-D0B-TX
Enquire
Our Price: $44.50

With a little audio transformer in side the chassis, NA2F-D0B-TX is a handy device to keep in your toolkit, should your XLR outputs need to end up plugging into RCA inputs of some kind (ie; DJ rig, domestic amplifier, et al).

Miniature transformer balancing adapter, 3 pole XLR female - RCA / phono socket, black coded

Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required.

Audio transformer 1:1
Impedance ratio: 200:200
Source/load impedance in Ohm: 200/2k, (600/10k)
Max. Input level (@ 50 Hz, 1% THD): -3 dBu

Not exactly what you're looking for?

Factory Sound is Australia's largest stockist of genuine Neutrik adapters and connectors.

Browse Neutrik via our webstore to find more solutions.

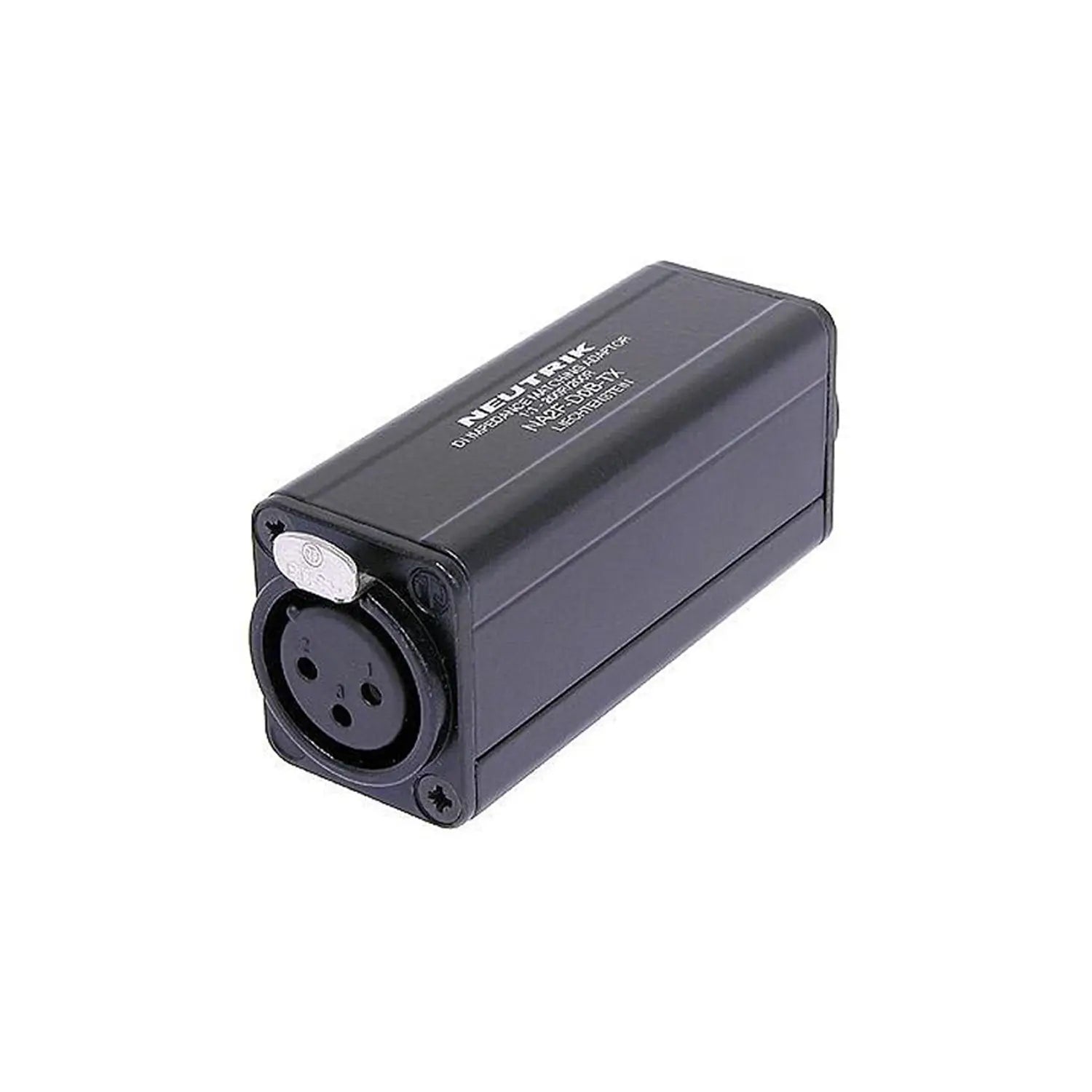

Photo of Neutrik NA2F-D0B-TX available from Factory Sound

Features:

  • The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
  • Rugged aluminium extrusion housing for best reliability
  • colour coding on all RCA types
