Neutrik

Neutrik NC5FD-LX-B

5 Pin Female XLR Connector (panel mount, black w/ gold)

Order Code: NC5FD-LX-B
Enquire
RRP: $21.60

5 Pin female XLR panel mount. Cups for wire soldering. Nickel housing and silver contacts. Unified 'D' Size - now accepted worldwide as a standard. Solder cups can accept up to 18 AWG (1.0mm²). Includes latch.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Black, with gold contacts:
This version of NC5FD-LX (5 pole female receptacle) has a sleek black housing, with gold contacts for superior performance.

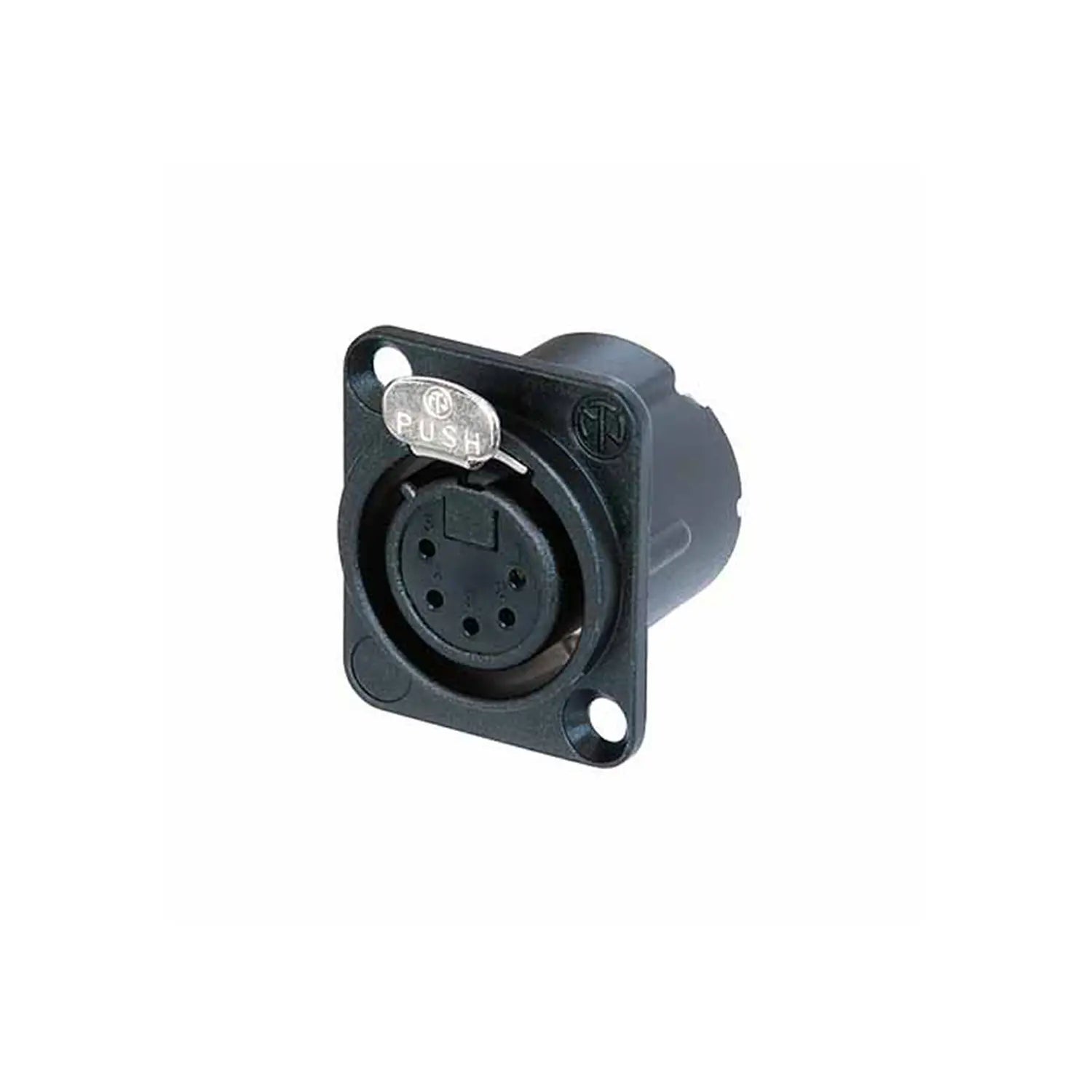

Photo of Neutrik NC5FD-LX-B available from Factory Sound

Features:

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
