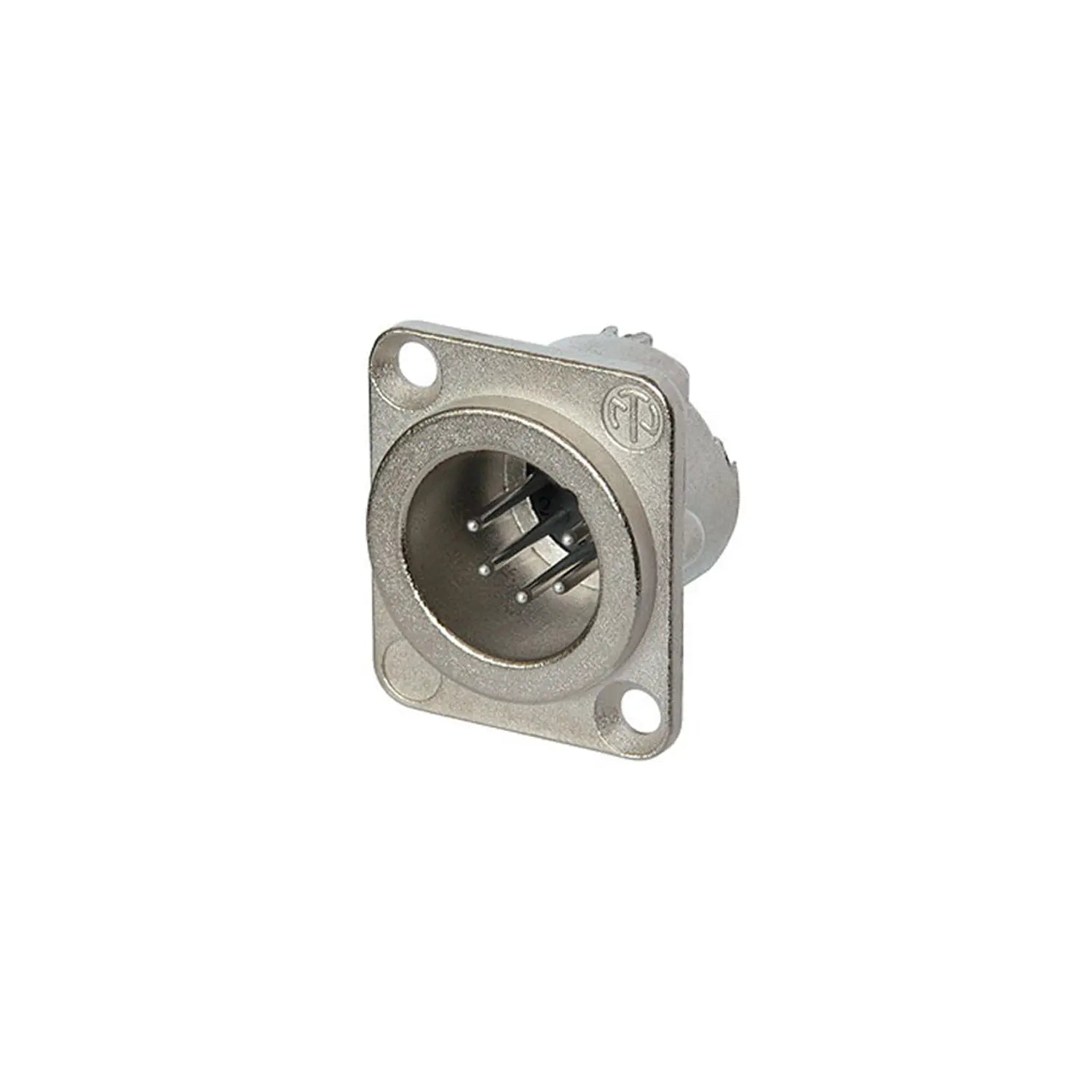

5 Pin male XLR panel mount. Cups for wire soldering. Nickel housing and silver contacts. Unified 'D' Size - now accepted worldwide as a standard. Solder cups can accept up to 18 AWG (1.0mm²). Includes latch.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
