Radial ProD2

Passive Stereo DI Box

Order Code: PROD2
Enquire
Our Price: $249.00

When you’ve got a keyboard that needs to plug into the PA system, make sure it’s clean.

Radial ProD2 is a stereo (2 channel) passive DI box designed to help do that exact thing. If you want to step up to every bell, whistle, and genuine Jensen transformers, you’d best check out the inimitable DUPLEX. Failing that though, this compact version has got the nuts and bolts to ensure your gig cruises along smoothly.

At the heart of the design are two high performance Eclipse ET-DB2 transformers (by Radial). These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion.

Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics.

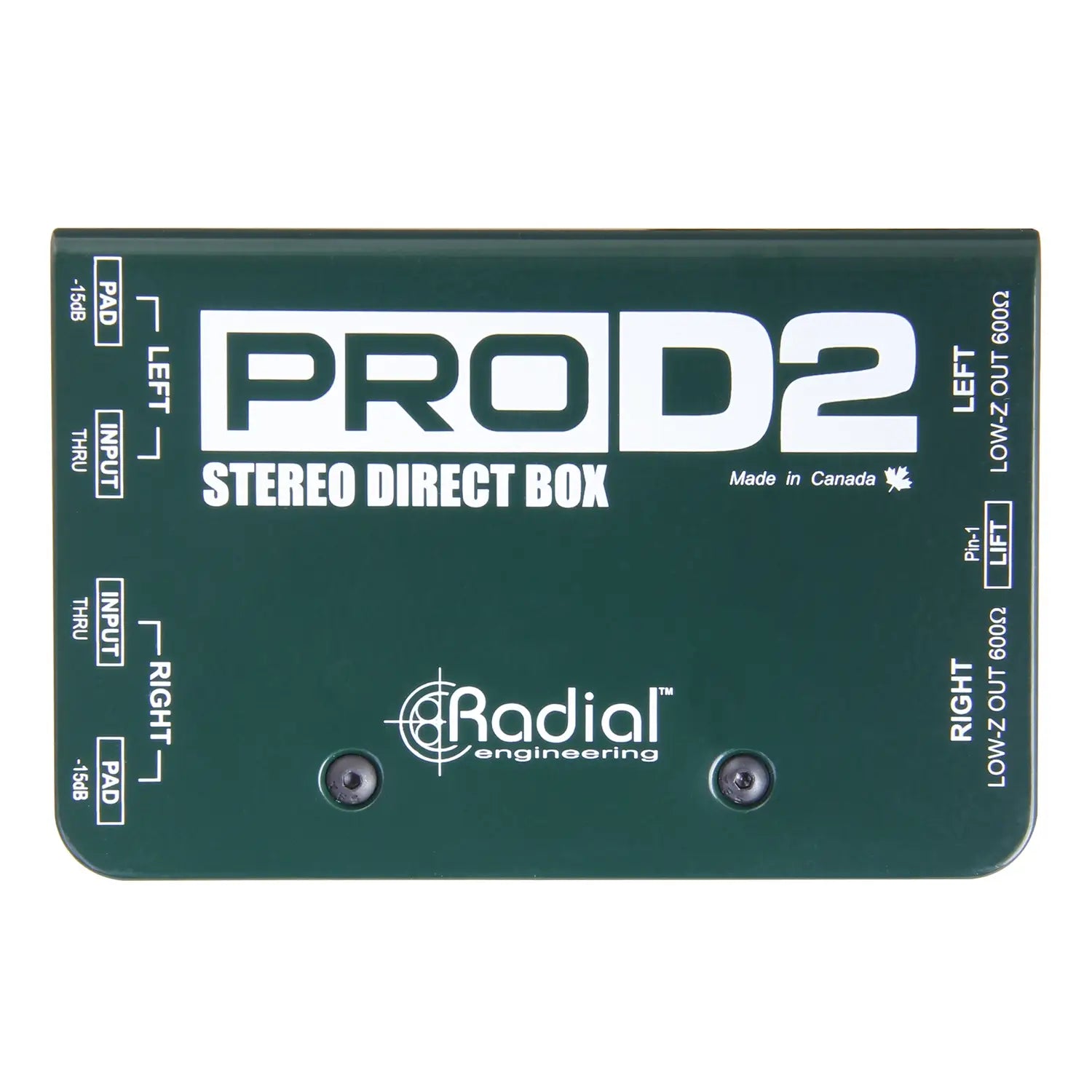

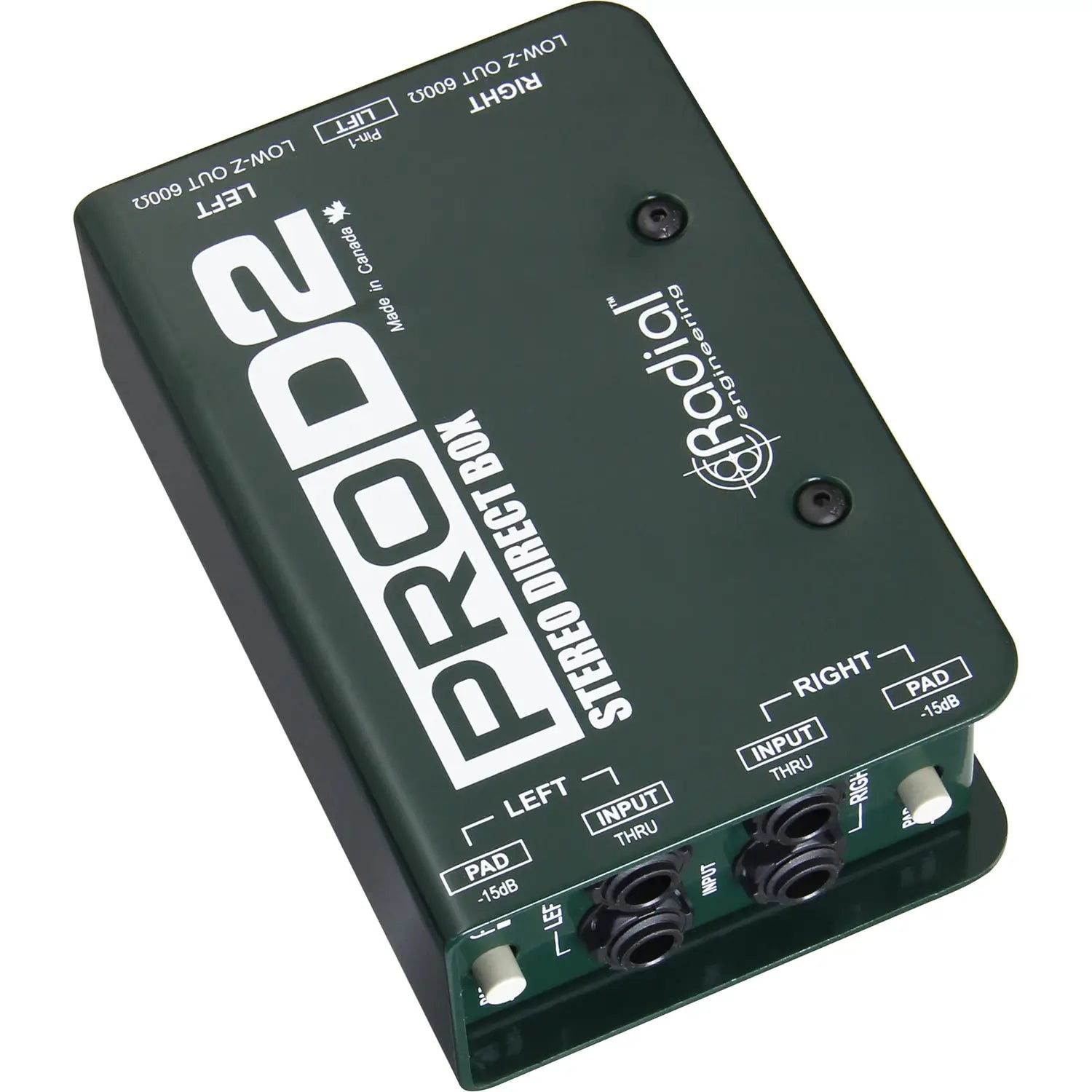

Photo of Radial ProD2 available from Factory Sound
  • Prod2
  • Prod2-connections
  • Prod2-transformers

Features:

  • Stereo direct box designed for keyboards
  • Smooth, warm sound rounds out digital edge
  • Able to handle huge transients without choking
  • May be rack mounted for touring rigs

As with all Radial products, the ProD2 is built tough to handle the rigors of professional touring. A 14-gauge steel ultra rigid i-beam skeleton frame eliminates opportunity from outside stress to flex the sensitive PC board and cause premature solder joint failure. The innovative book-end design creates a protective zone around the connectors and switches further increasing lifespan.

Specifications

Audio circuit type:  Passive, transformer based
Number of channels: Dual channel (stereo)
Frequency response:  20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range:  128dB
Maximum input:  +18dB @ 20Hz
Total harmonic distortion:  0.01% from 20Hz~20kHz @-10dB
Phase deviation:  1° @ 100Hz; 8° @ 20Hz
Input impedance:  140k Ohms, unbalanced
Output impedance:  150 Ohms, balanced


Features

Transformer: Eclipse ET-DB2, 12:1 ratio
Shield: Faraday, mu-metal can
Input pad:  -15dB
180° polarity reverse:  Inverts absolute phase

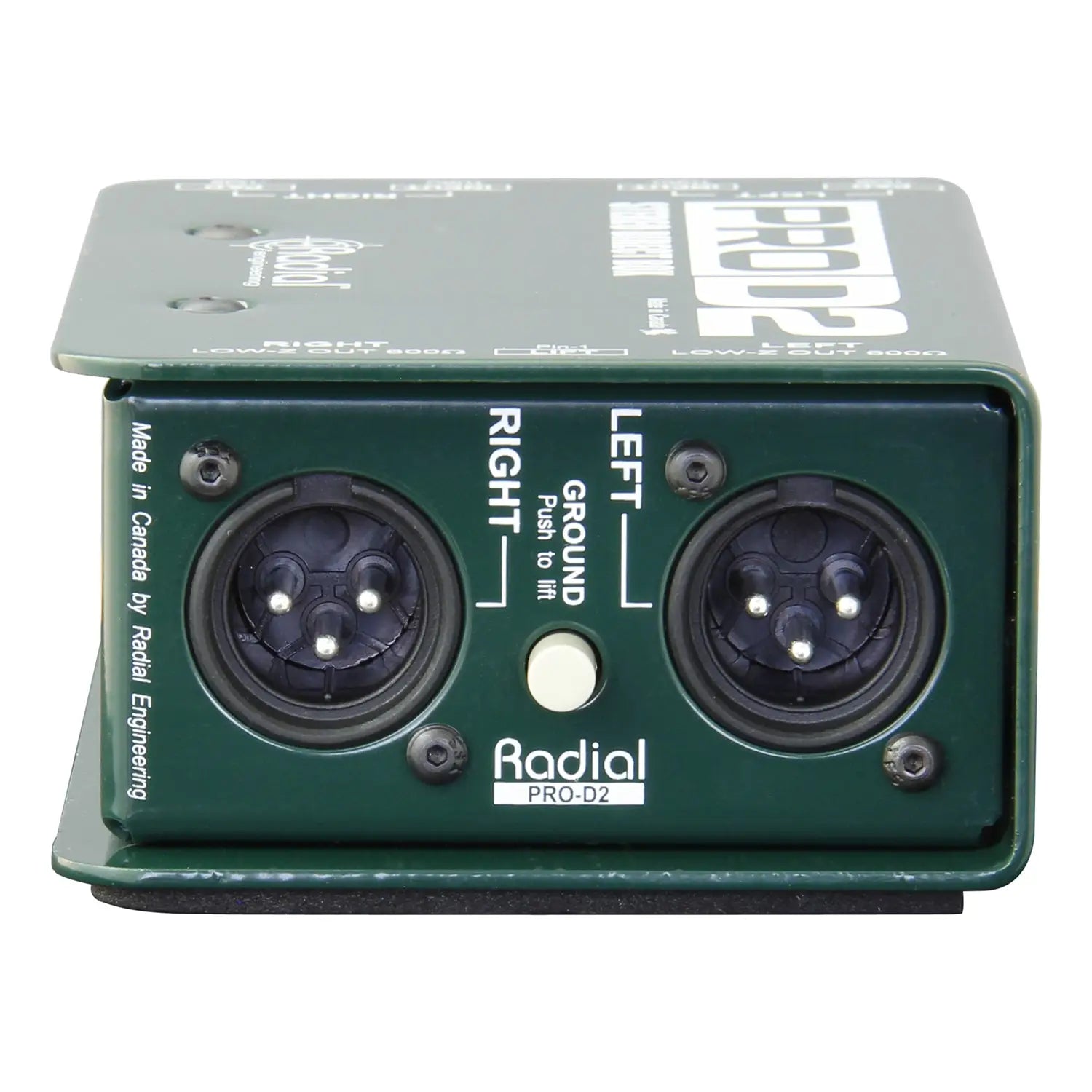

Ground lift:  Disconnects pin-1 at XLR output
XLR configuration:  AES standard (pin-2 hot)

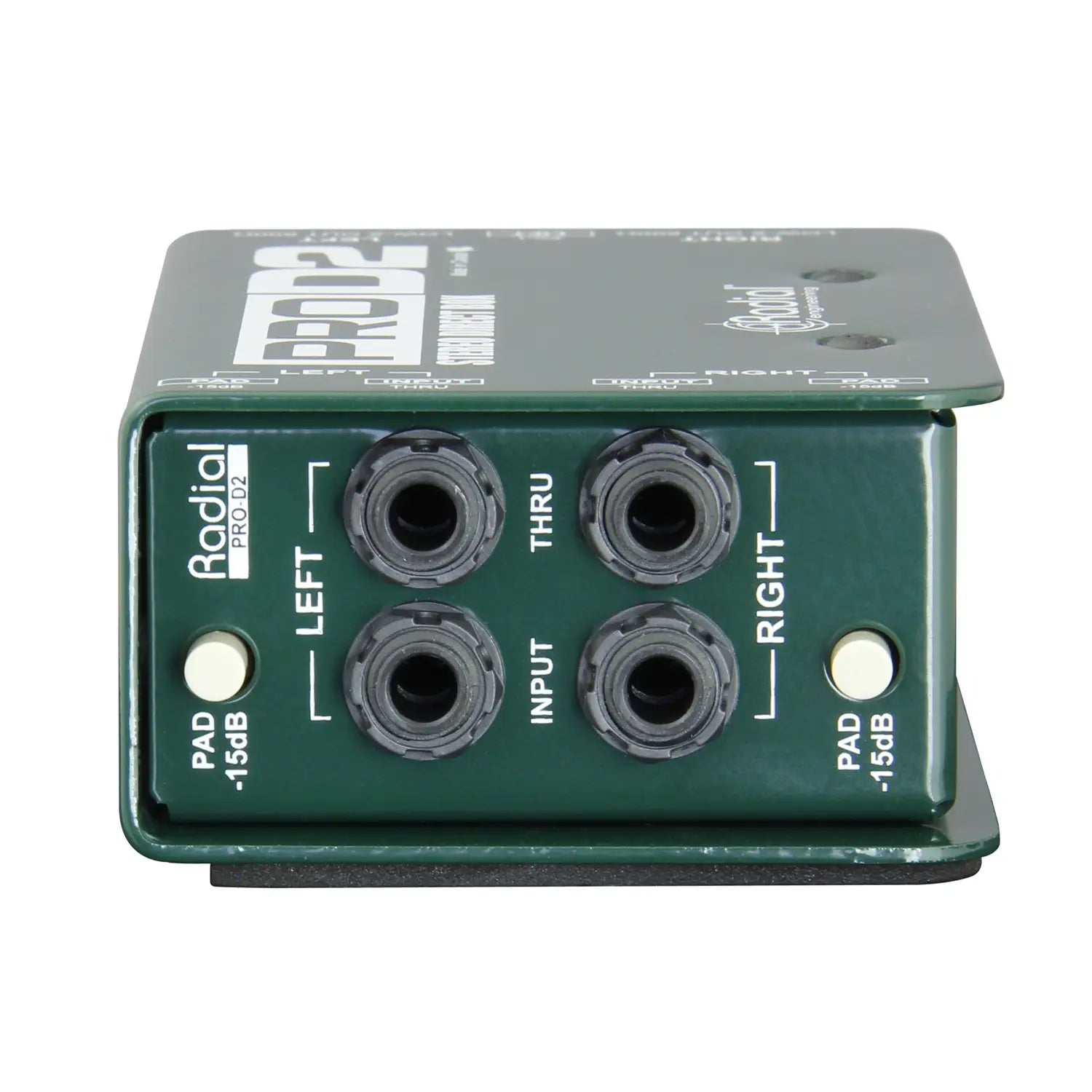

Connectors: 1/4" in & thru, XLR-M out


General

Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size:  (W x H x D) 70 x 108 x 44mm
Weight:  0.54kg
Power:  Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
