Radial ProDI

Passive DI Box

Order Code: PRODI
Enquire
Our Price: $165.00

Radial ProDI is a mono (single channel) passive DI box designed to help you hit the PA, AV or studio system as clean as possible. If you want to step up to every bell, whistle, and genuine Jensen transformers, you’d best check out the inimitable JDI. Failing that though, this compact version has got the nuts and bolts to ensure your gig cruises along smoothly.

At the heart of ProDI is a custom wound Radial transformer. It features an exceptionally high 140k? input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal mu-metal shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

The 14-gauge steel I-beam skeleton for added rigidity and Radial's unique book-end design that creates a protective zone around switches and connectors go to make DroDI destruction-proof. A full bottom no-slip pad provides both mechanical isolation and electrical insulation to further protect against the rigors of professional touring.

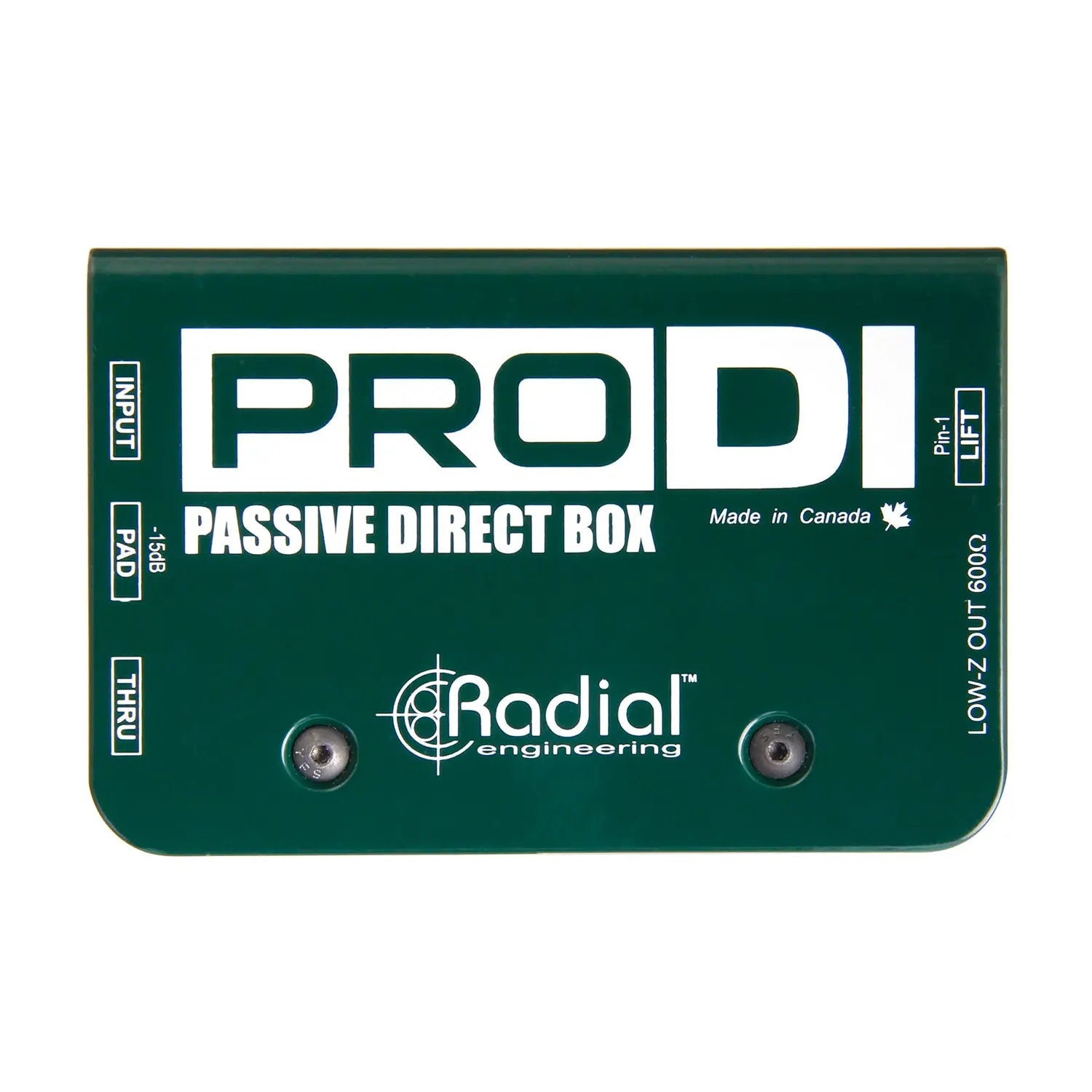

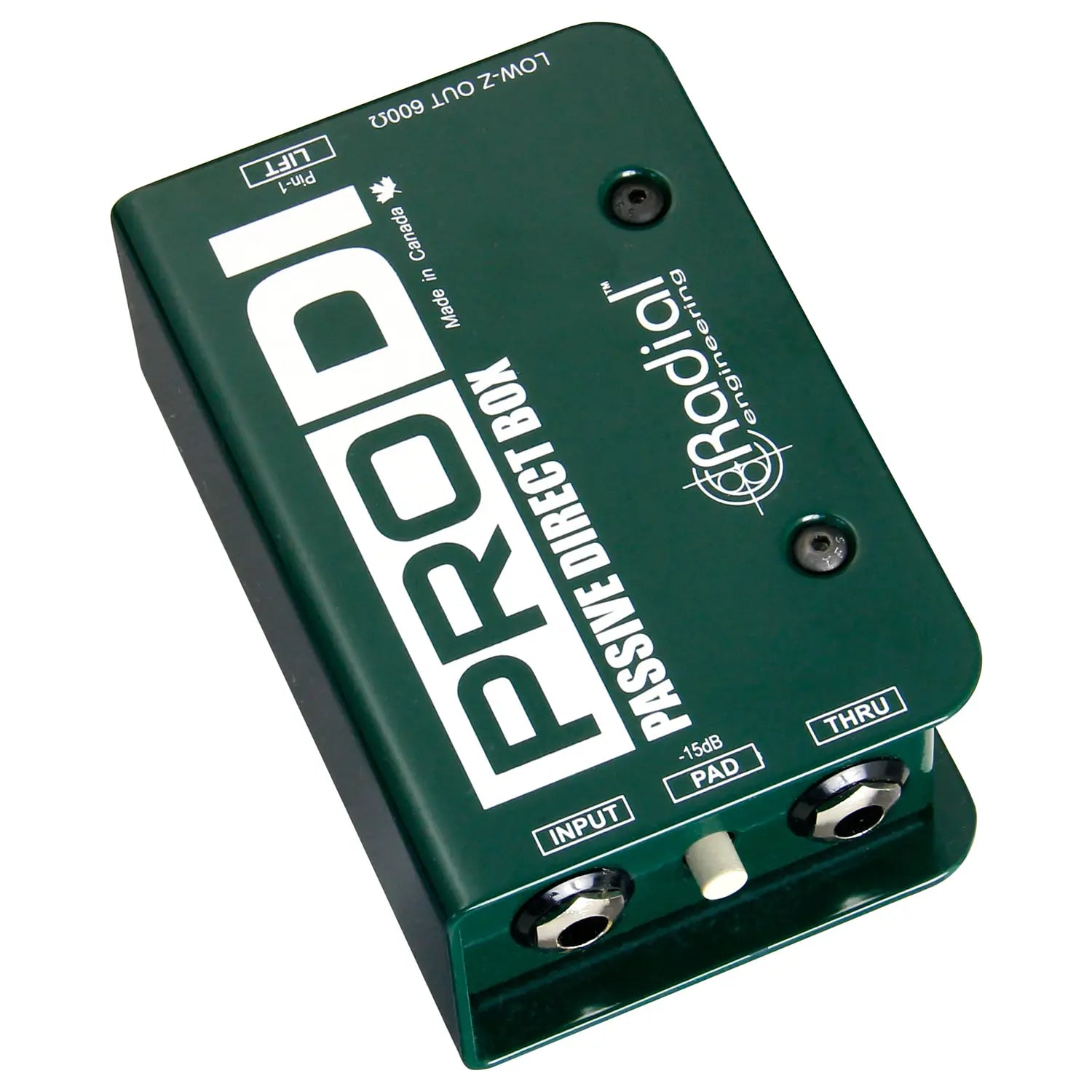

Photo of Radial ProDI available from Factory Sound
  • Prodi

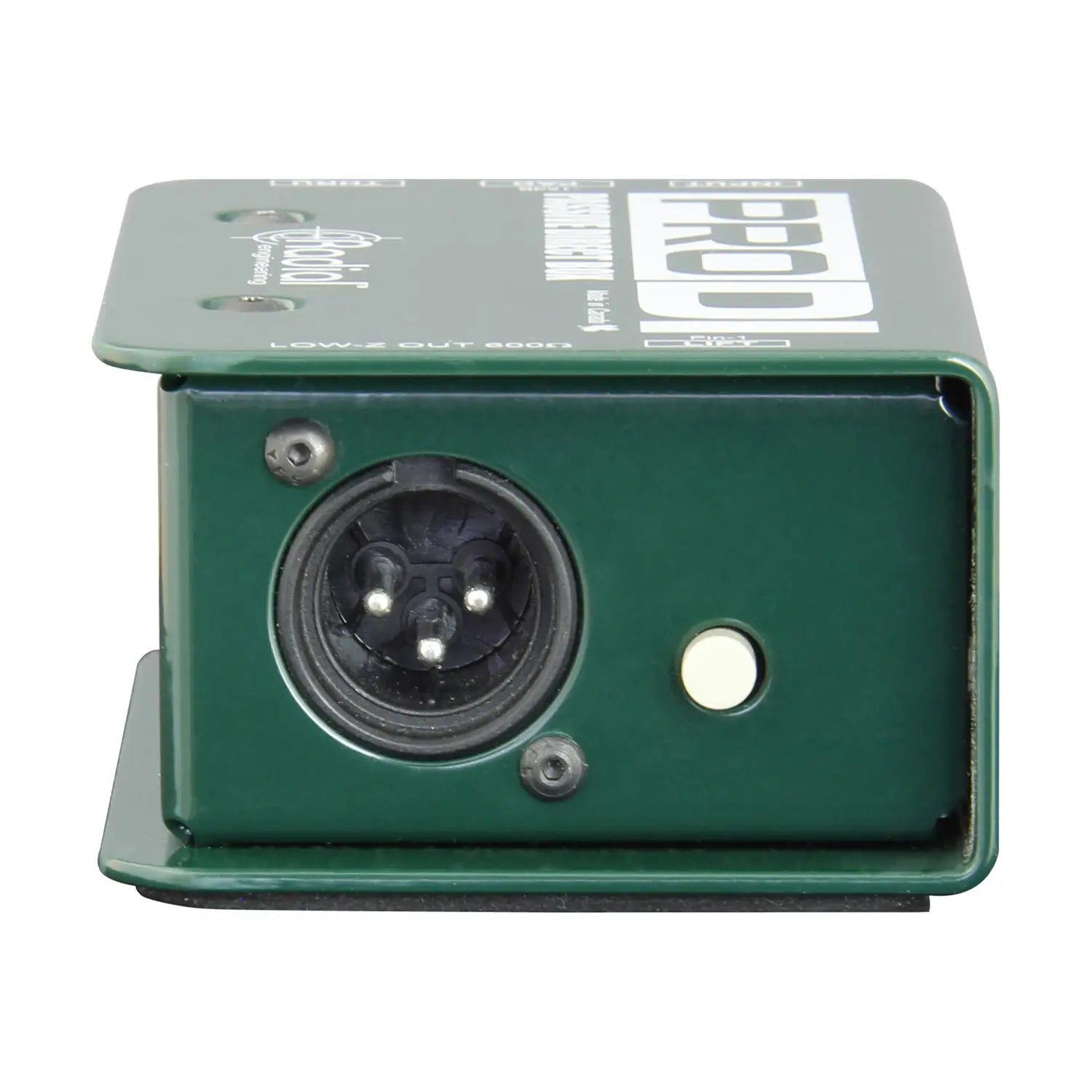

  • Prodi_back

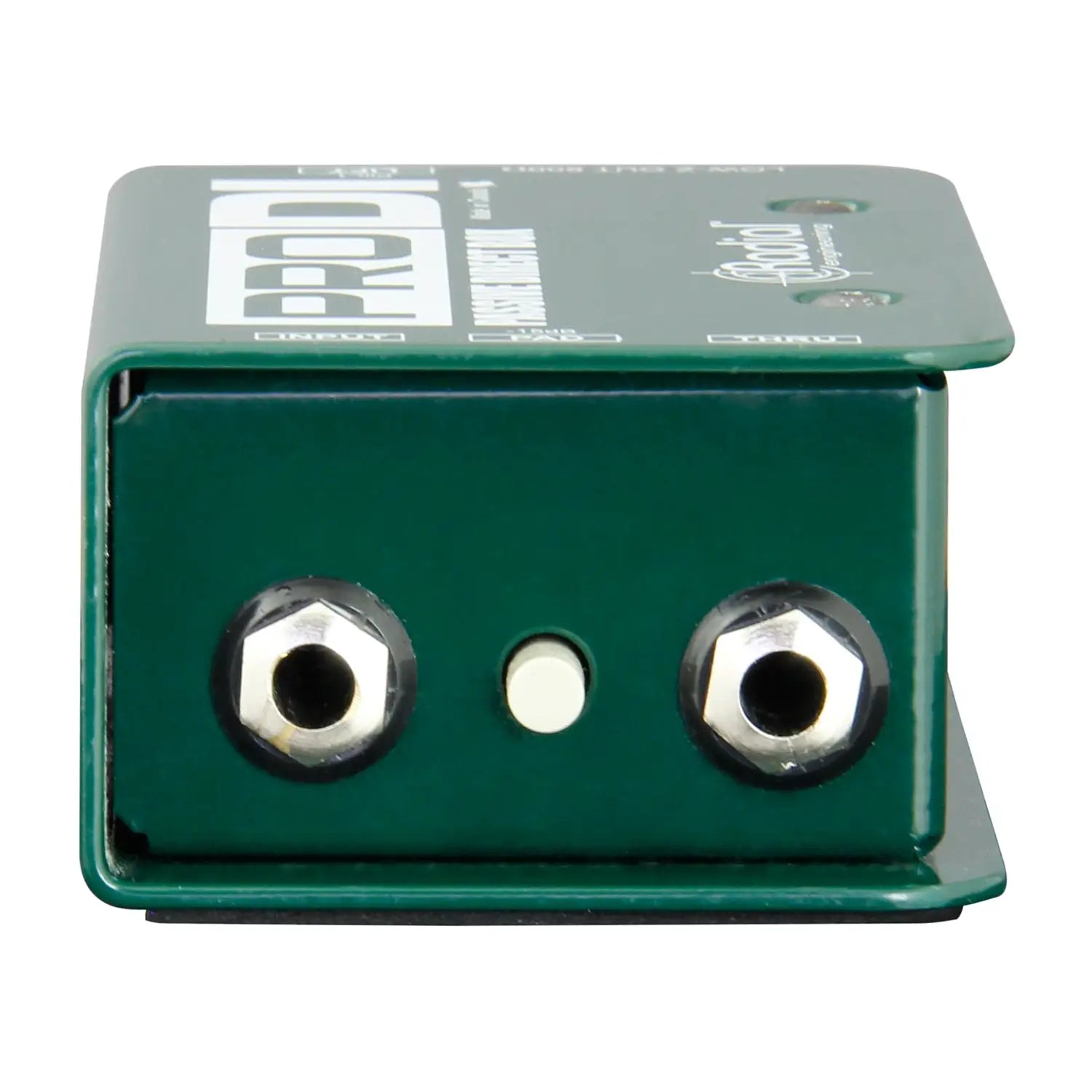

  • Prodi_front

Features:

  • Compact passive direct box for stage and studio
  • Able to handle huge transients without distortion
  • Transformer isolation eliminates noisy ground loops
  • Plug and play easy to use feature set - on stage or in the studio

For a 2-channel version, check out ProD2

Specifications

Audio circuit type:  Passive, transformer based
Number of channels: Single channel (mono)
Frequency response:  20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range:  128dB
Maximum input:  +18dB @ 20Hz
Total harmonic distortion:  0.01% from 20Hz~20kHz @-10dB
Phase deviation:  1° @ 100Hz; 8° @ 20Hz
Input impedance:  140k Ohms, unbalanced
Output impedance:  150 Ohms, balanced


Features

Transformer: Eclipse ET-DB2, 12:1 ratio
Shield: Faraday, mu-metal can
Input pad:  -15dB
180° polarity reverse:  Inverts absolute phase
Ground lift:  Disconnects pin-1 at XLR output
XLR configuration:  AES standard (pin-2 hot)
Connectors: 1/4" in & thru, XLR-M out


General

Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size:  (W x H x D) 70 x 108 x 44mm
Weight:  0.54kg
Power:  Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
