dbx

dbx VENU360

DriveRack Venu360: 3 in/6 out

Order Code: VENU360
Enquire
Our Price: $1,629.00

DriveRack VENU360 is a complete loudspeaker management system - 3in/6out.

Built on year of experience with DriveRack 260, DriveRack PA+ and DriveRackPA2, the elegantly presented DriveRack VENU360 has all the processing needed to wrangle your sound system - including complete control from your mobile device.

With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors.

Updated Wizard Setup Functions
Wizard functions in DriveRack VENU360 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. The Wizards help you configure routing, level balancing, AutoEQ, Advanced Feedback Suppression, and provide access to updated speaker tunings – available for many major speaker brands. The addition of a Monitor Wizard makes it easy to configure and optimise stage monitors.

Check the video tab below for a quick walkthough some of the features of DriveRack VENU360

Photo of dbx VENU360 available from Factory Sound

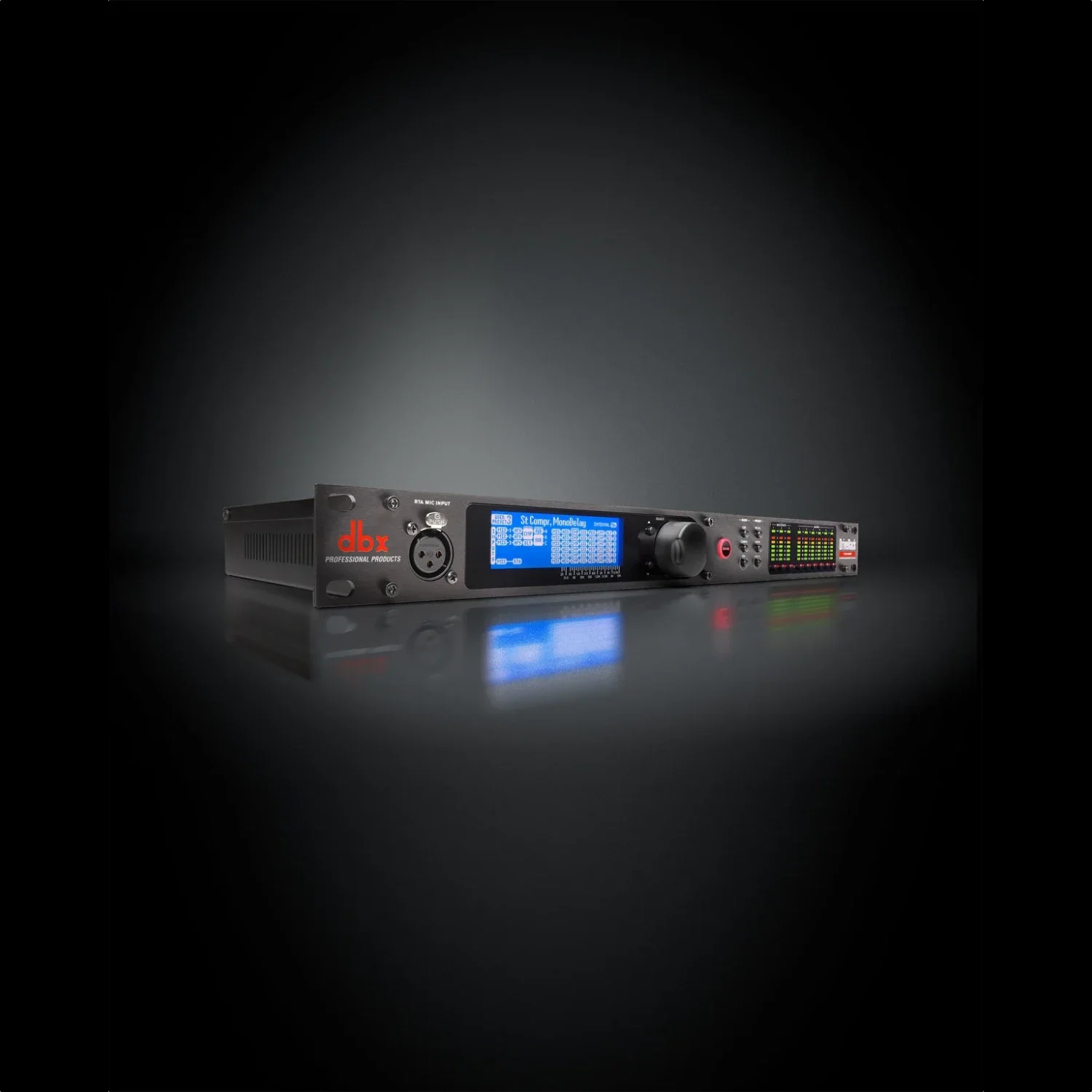

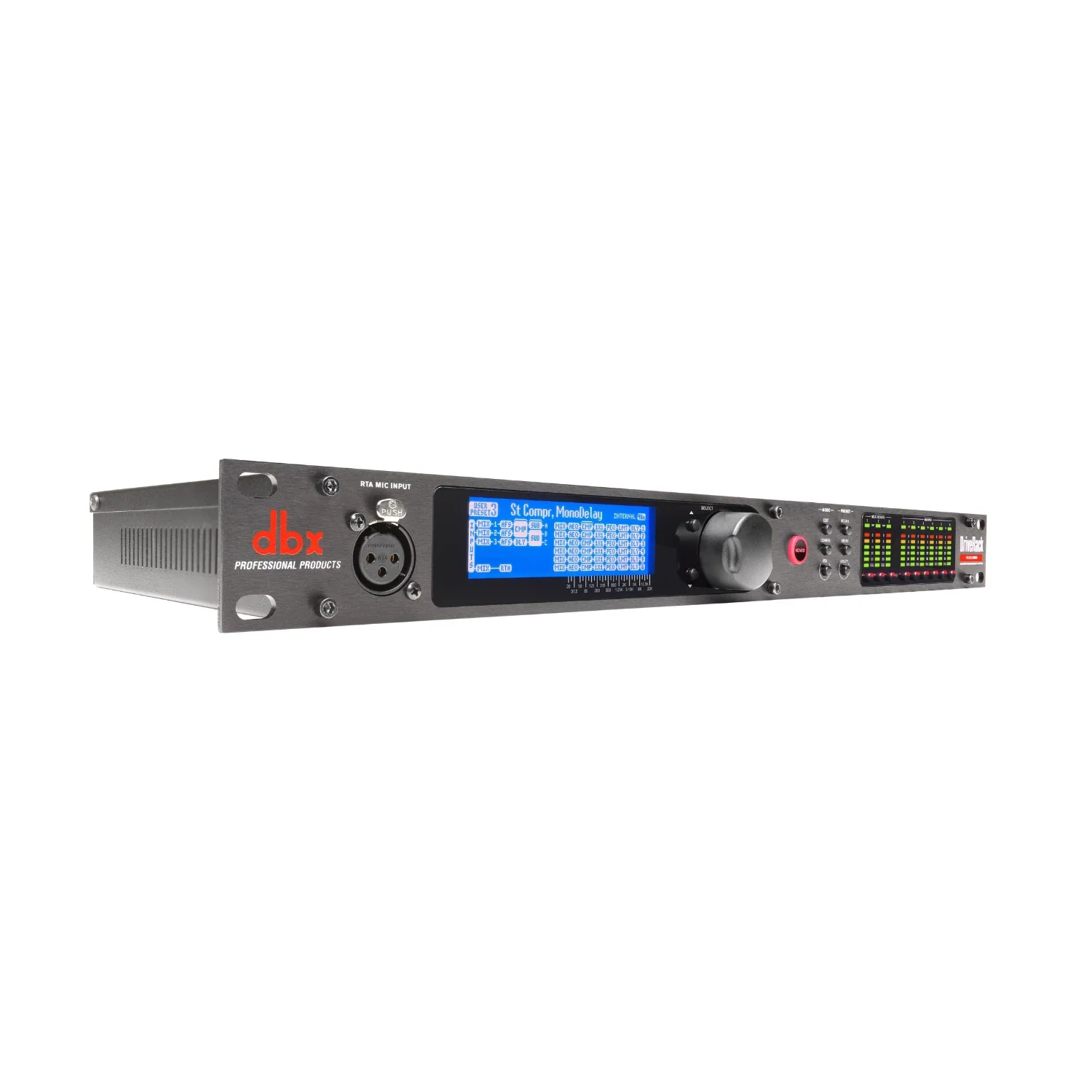

  • Venu360
  • Venu360-panels

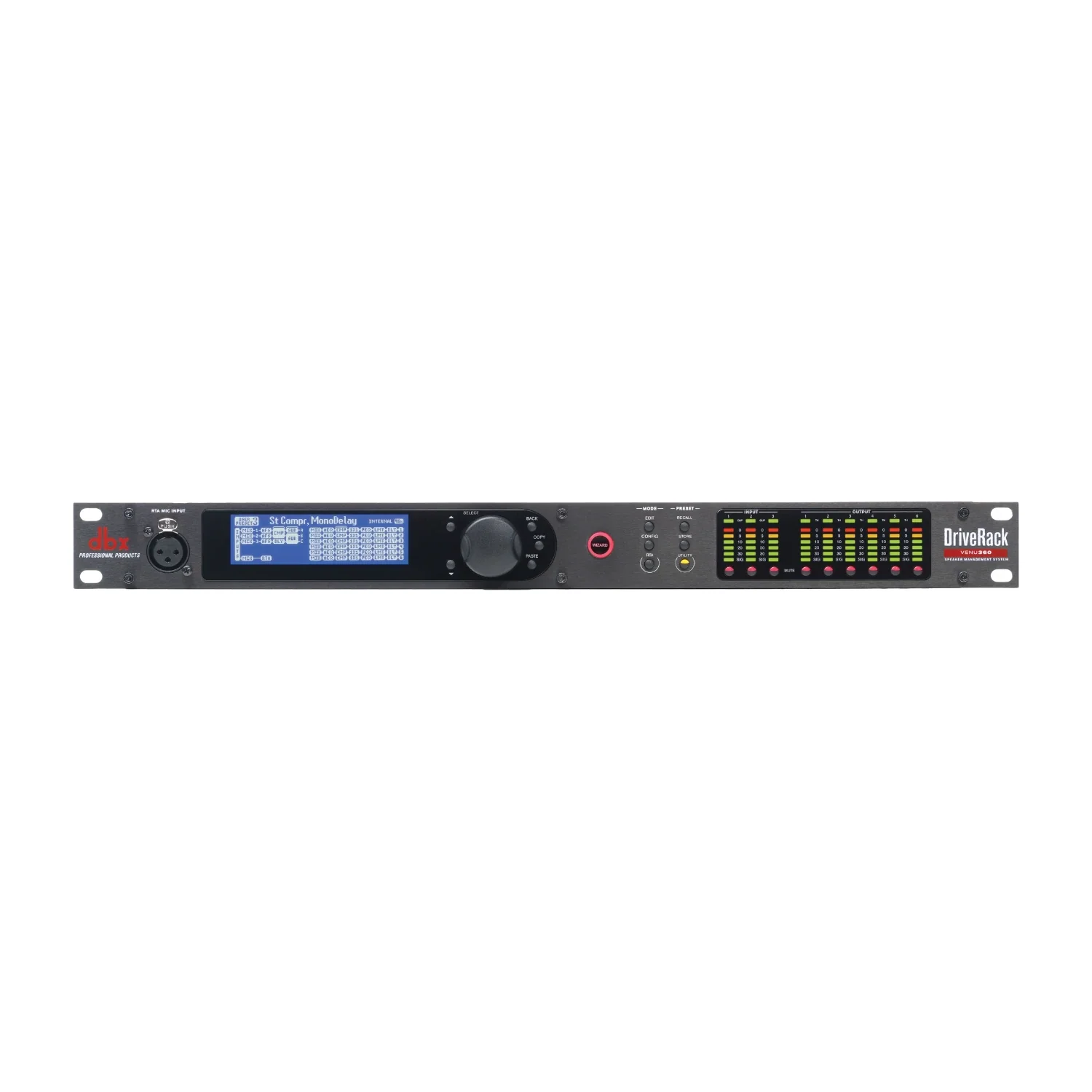

  • Venu360-front

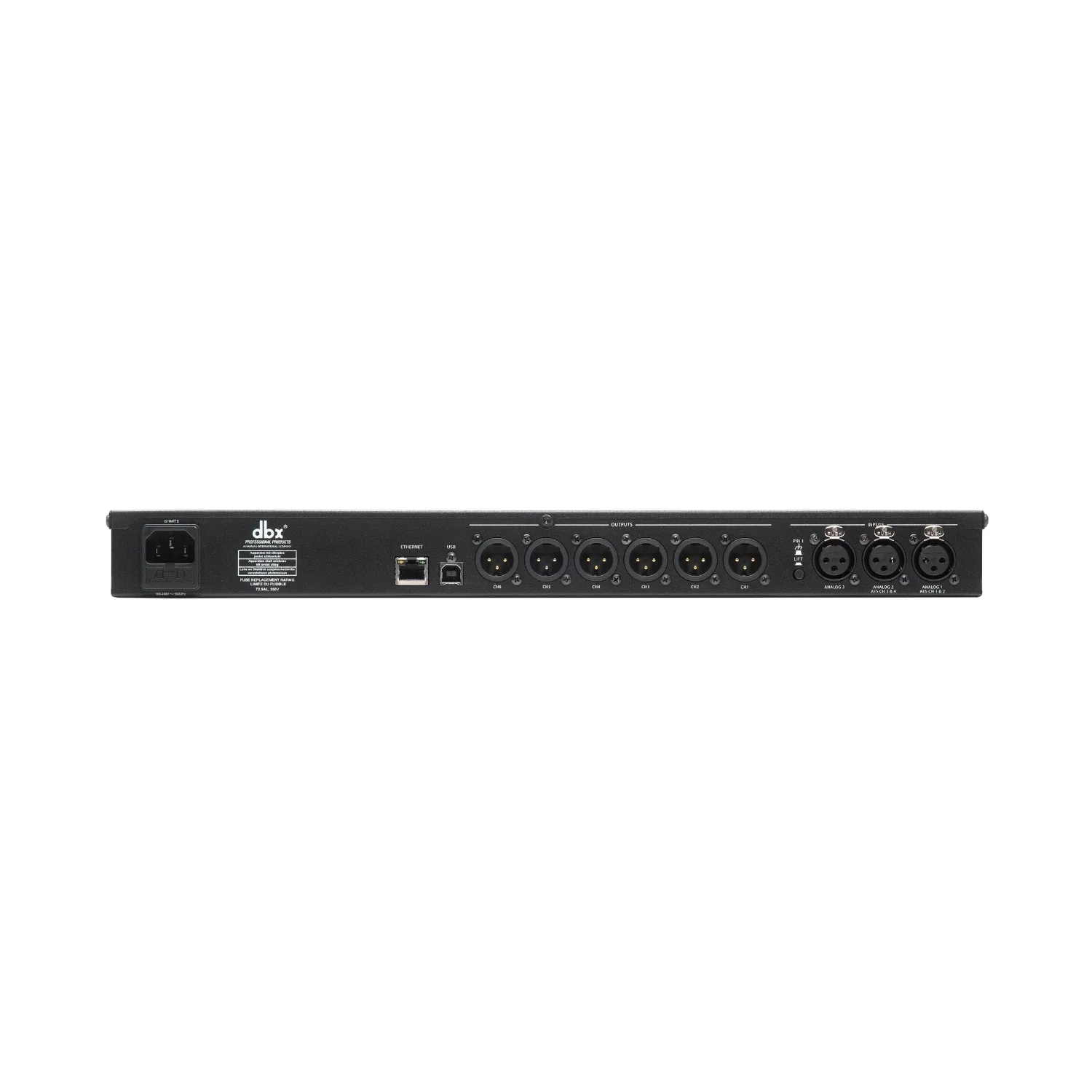

  • Venu360-connections

VENU360 features:

Input Processing

  • dbx Compression
  • AFS™ (Advanced Feedback Suppression)
  • 31-Band Graphic EQ
  • 12-Band Parametric EQ (with narrow notch capabilities)
  • Subharmonic Synthesis
  • Backline Delay
  • Noise Gate

Output Processing

  • Crossover (supports full range up to mono 6-way systems)
  • 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
  • dbx Compression
  • Automatic Gain Control
  • Subharmonic Synthesis
  • Noise Gate
  • Tower Delays (up to 1000ms per output)
  • 8-Band Parametric EQs (used for speaker tunings)
  • dbx Limiting
  • Driver Alignment Delays

Tested Wireless Routers:

  • Dlink 636L
  • Dlink Cloud router 2000
  • Cisco / linksys: WRT54G2V1
  • Netgear WGR614 v7
  • Netgear WNR 1000

(Other routers are likely compatible. This list represents those which have been tested by DBX)
