Radial X-Amp

Active Re-amplifier for studio guitars

Order Code: X-AMP
Enquire
Our Price: $259.00

Re-amping in the studio, while hardly a new technique, is harder to get right than you may sometimes think. Level, impedence, it's all got to be spot on to add to your sound palette rather than making the mix more like mud. So... you've recorder a killer guitar take, but you'd like to see how it goes with a cracker amp that someone has just brought in to the studio. Take an output from your DAW, plug it into the X-Amp, and then into your amp - no impedance, level or balanced/unbalanced issues are going to scare you.

Even better - when you record guitar for the first time, jam a J48 in the chain before you hit the amp, and you'll always record a perfect 'clean' track to allow pure re-amping later on, should the inspiration strike. And as for slamming a drum bus through a wah pedal for a breakdown, that's a story for another day...

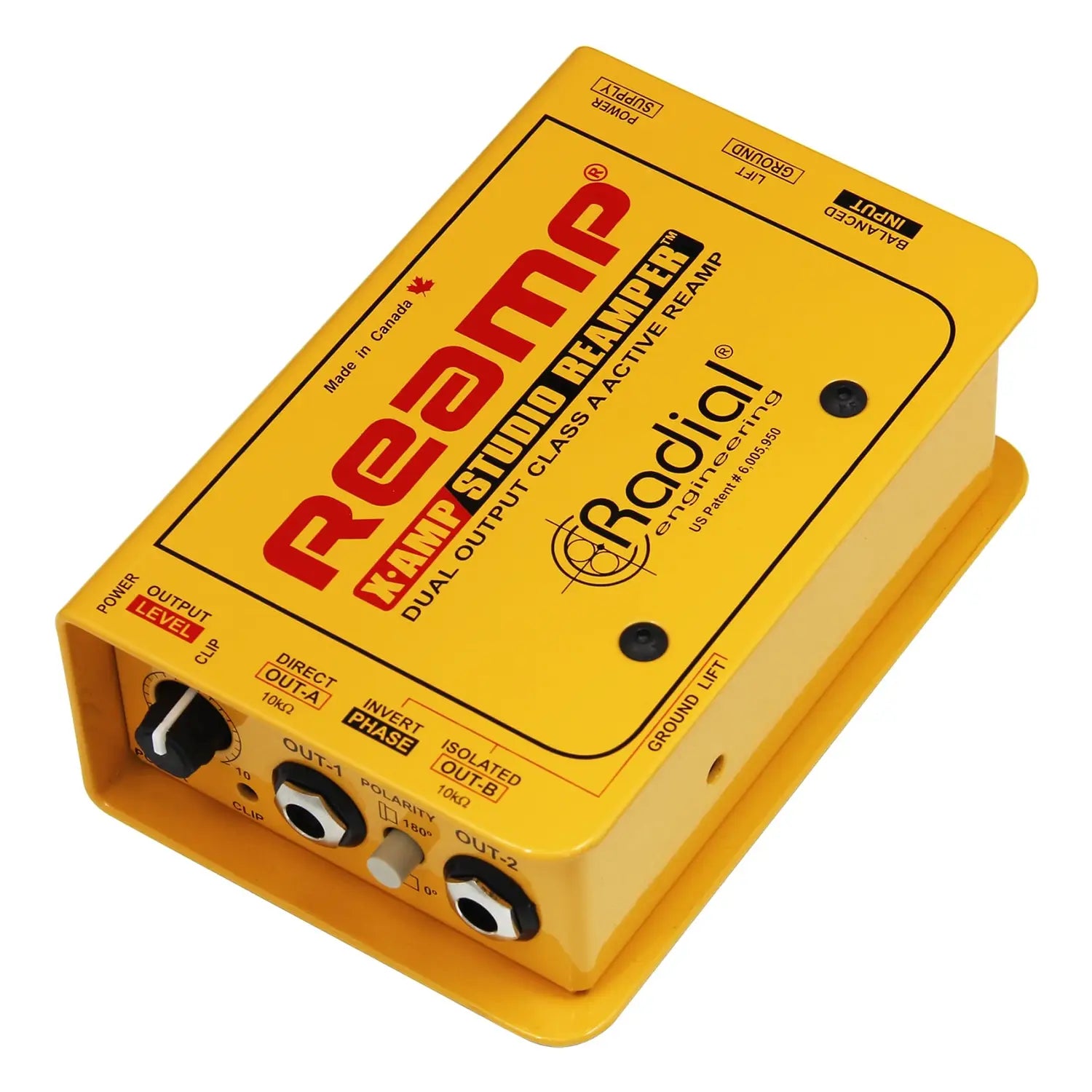

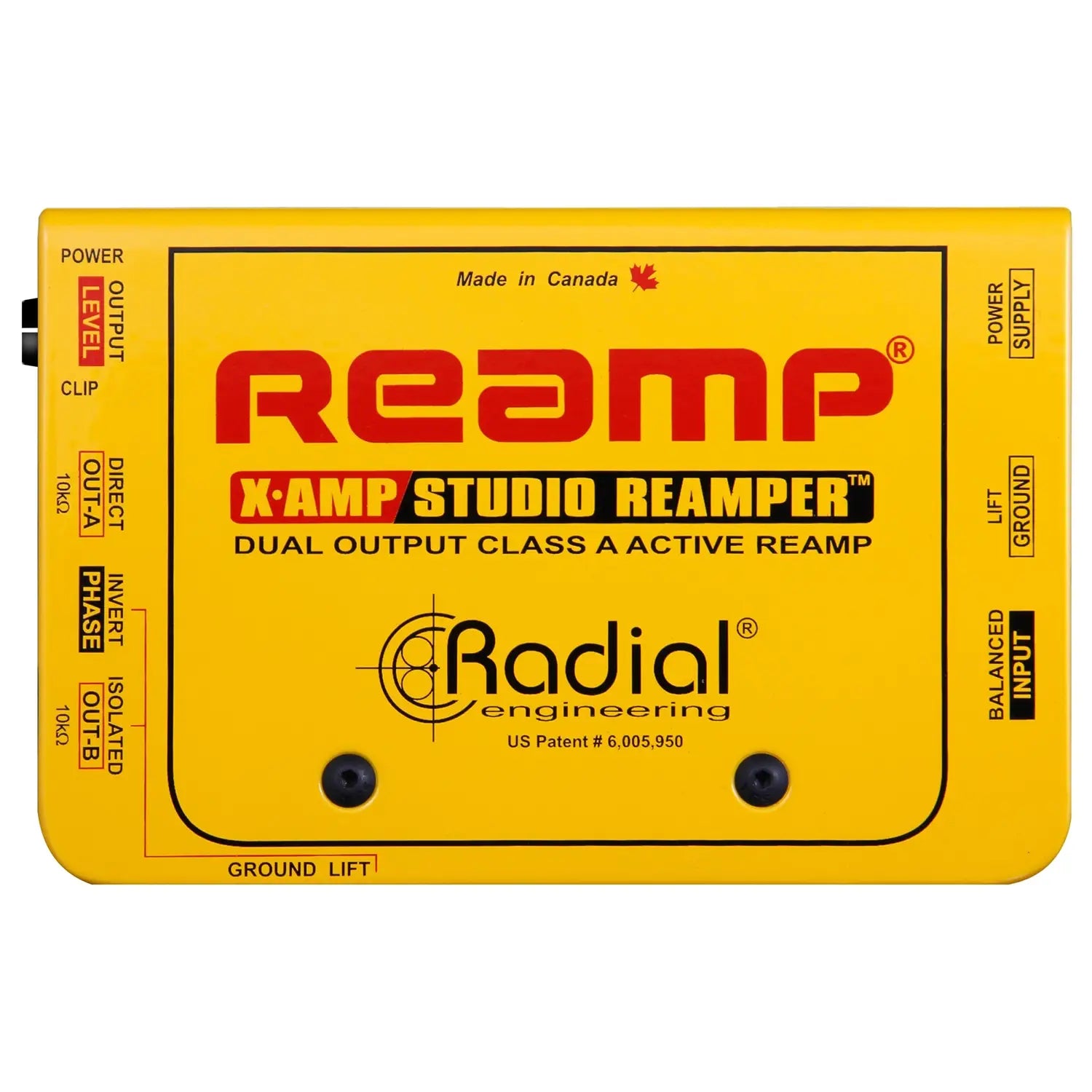

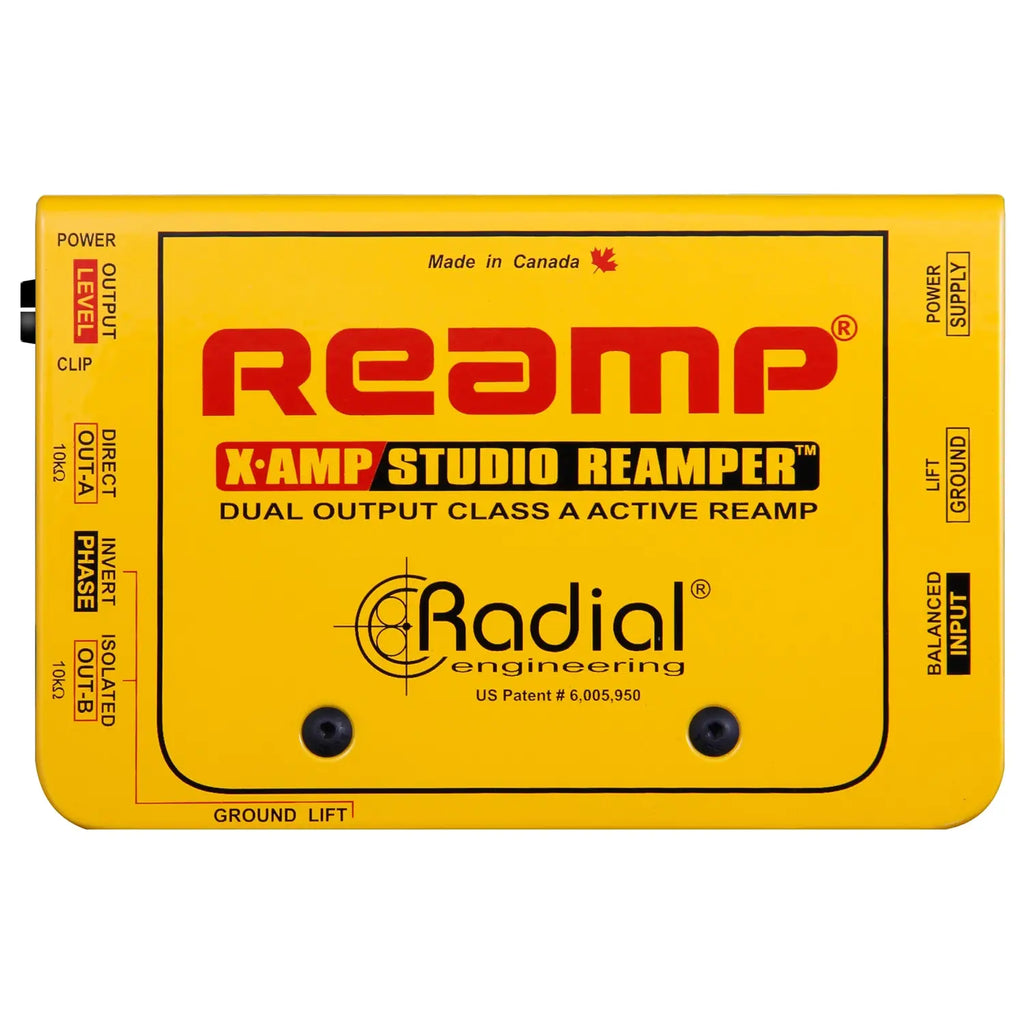

Photo of Radial X-Amp available from Factory Sound
  • X-amp
  • X-amp_top
  • X-amp_in
  • X-amp_out
  • Active Reamp® with two outputs
  • 100% discrete class-A signal path
  • Transformer isolated to eliminate noise
  • Variable 'set & forget' level control

Following the critically acclaimed Radial JD7 Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180º polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.

Specifications
Audio circuit type: 100% discrete class-A
Frequency response: 20Hz ~ 15kHz (± 1.0dB)
Signal to noise ratio: 88dB below instrument level (-20dBu)
Dynamic range: 119dB
Noise floor: OUT-1 -110dB; OUT-2 -108dBu
Maximum input: +22dBu
Total harmonic distortion: 0.02% @ -15dBu
Inter-modulation distortion: 0.02% @ -20dBu
Input impedance: 600Ω
Features
XLR input: Balanced line-level, AES standard (pin-2 hot)
Ground lift (input): Disconnects pin-1 at the XLR input
Output level: Adjustable
Output type: Out-1 direct, Out-2 isolated
Polarity: 180º polarity reverse on output-2
General
Power: +15VDC/400mA adapter included
Construction: 14 gauge steel chassis & outer shell, baked enamel finish
Size: 84 x 127 x 48mm
Weight: 720g
Warranty: 3-year
